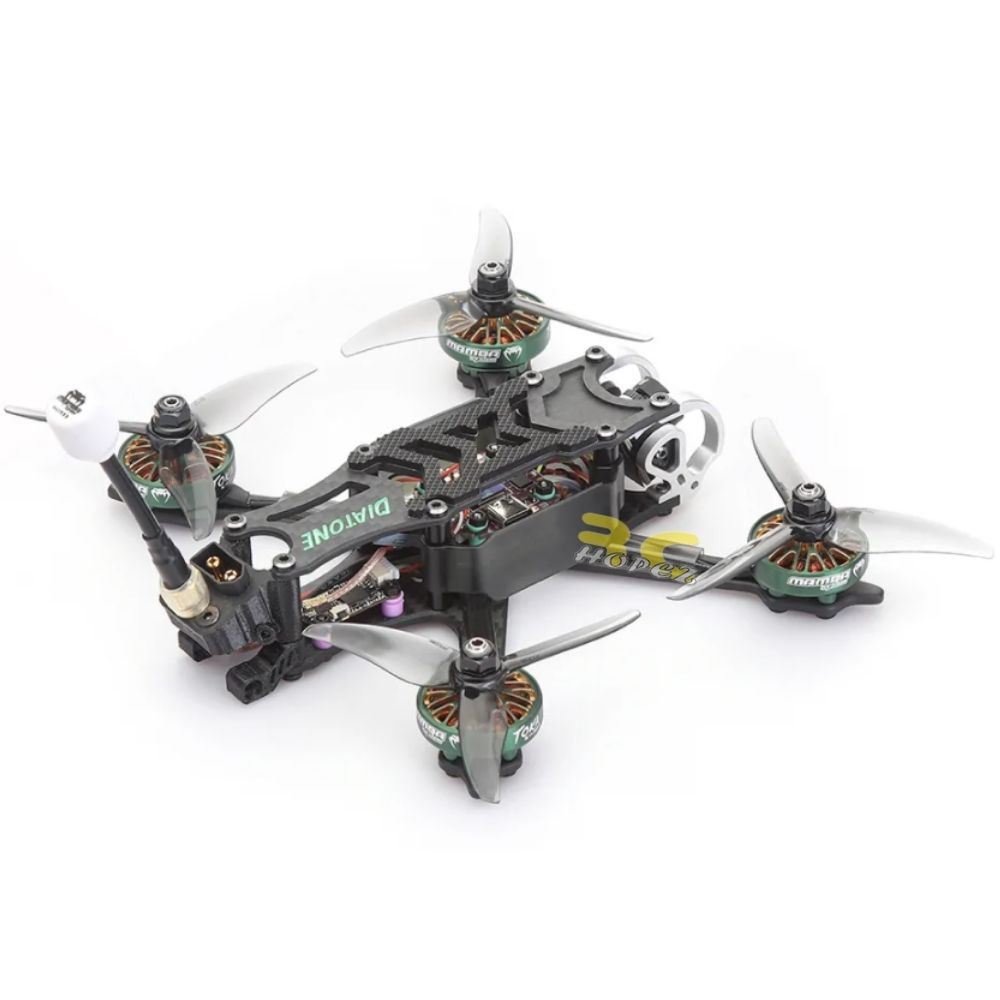

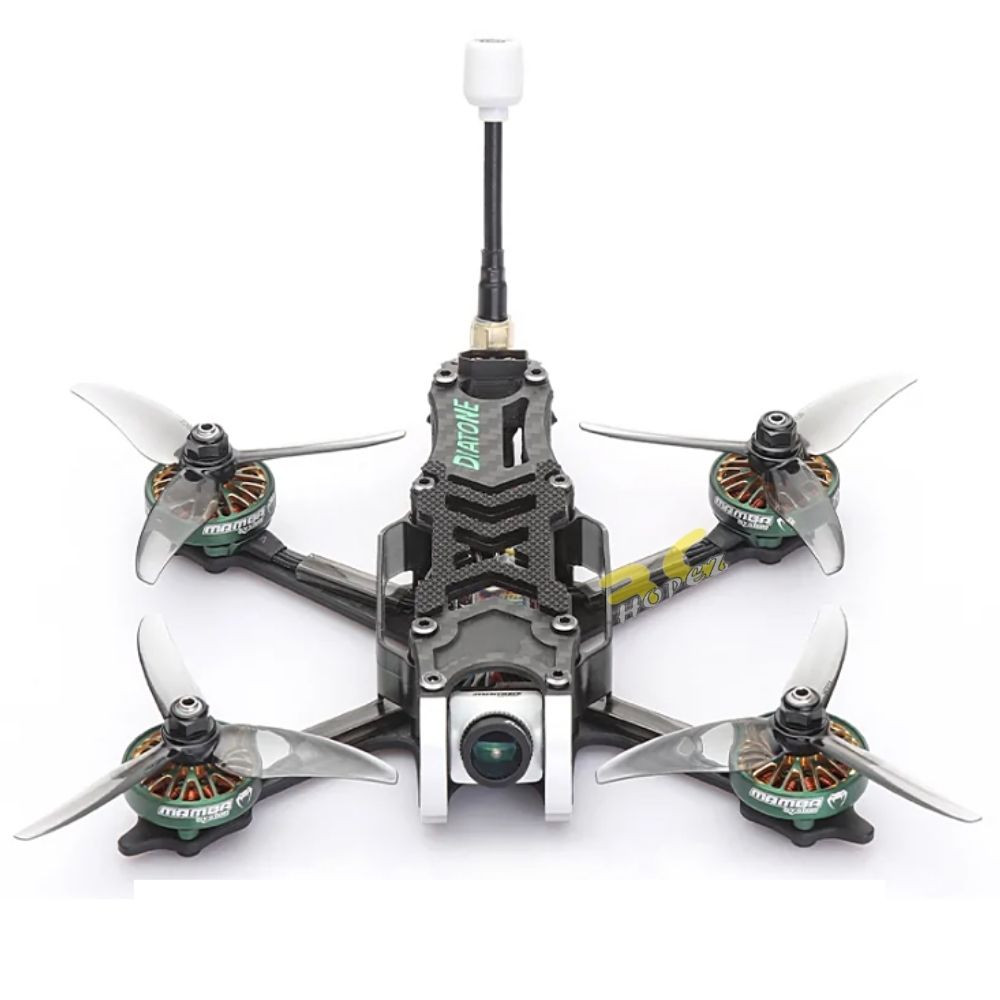

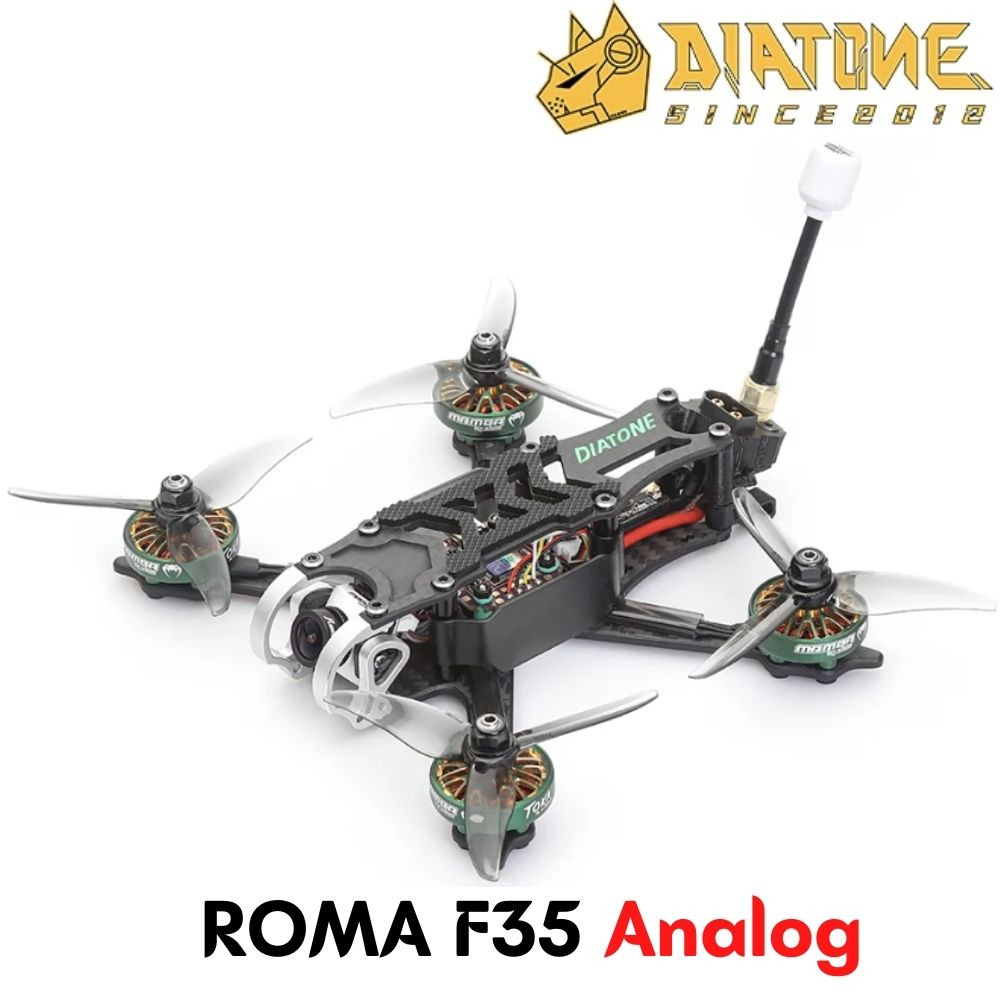

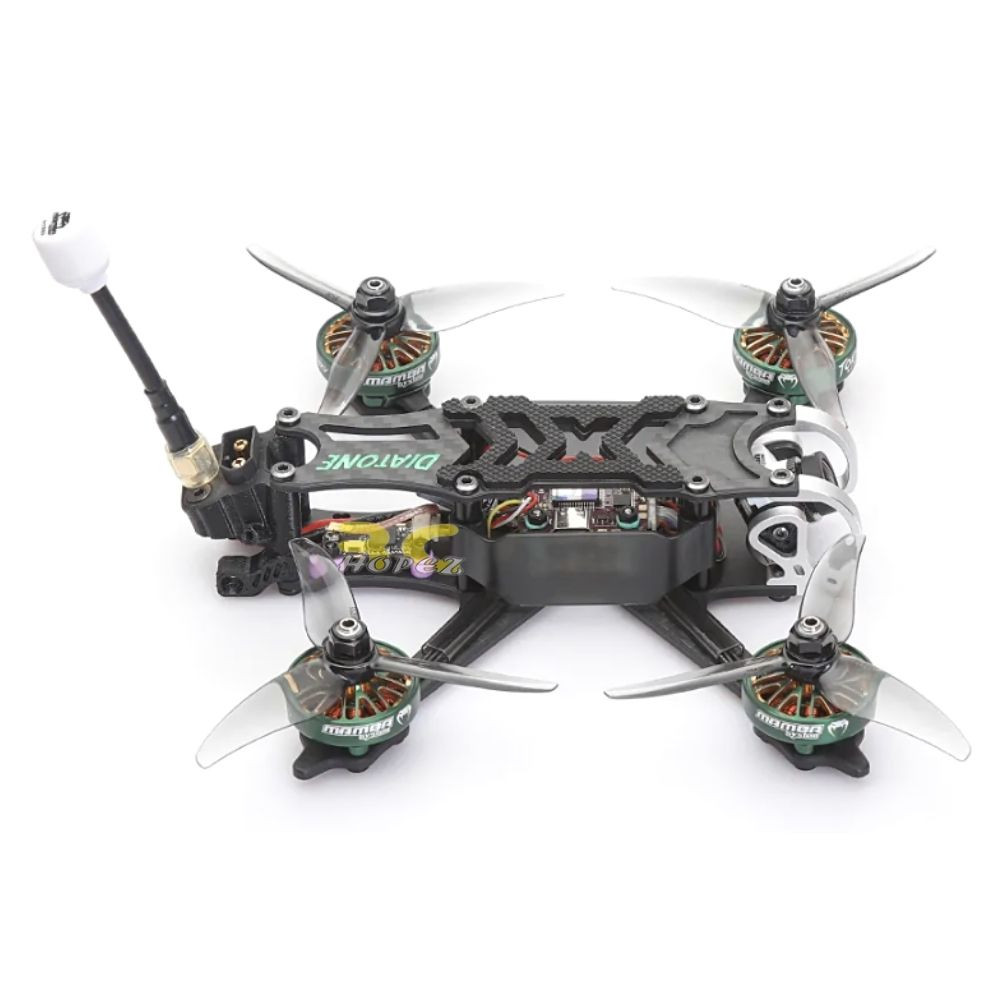

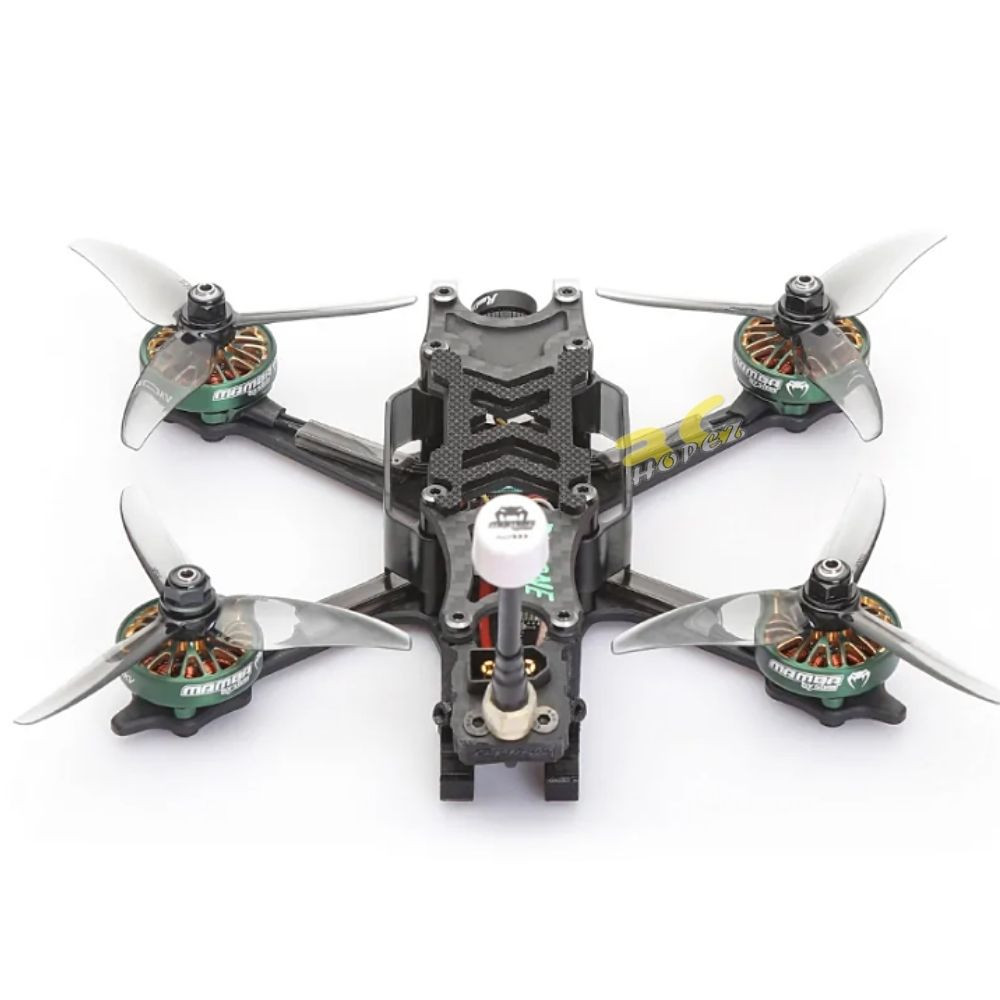

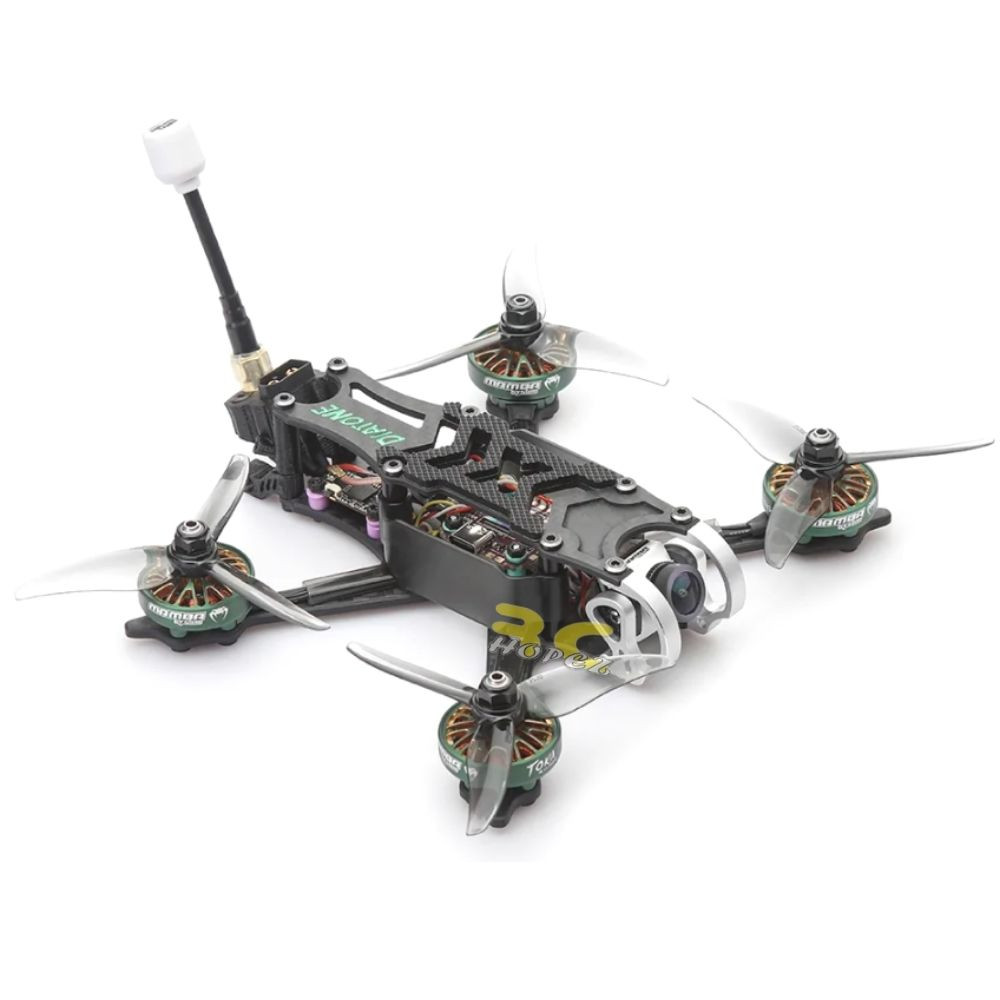

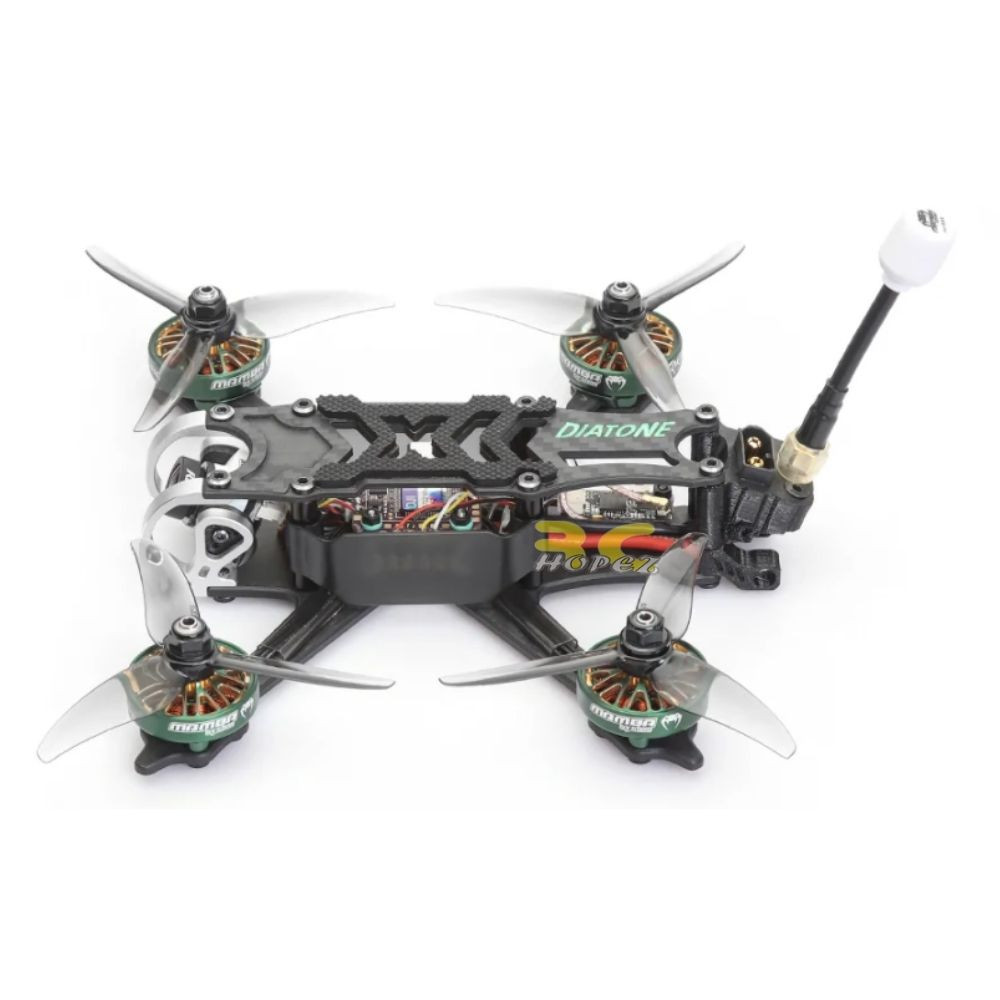

DIATONE Roma F35 Analog 3.5Inch 4S/6S (Optional) FPV Racing Drone With RUNCAM PHOENIX 2 Camera RomaF35AN

DIATONE Roma F35 Analog 3.5Inch 4S/6S (Optional) FPV Racing Drone With RUNCAM PHOENIX 2 Camera RomaF35AN

Brand: Diatone
Item Name: Roma F35 Analog 4/6S (Optional) FPV Drone
Camera: RUNCAM PHOENIX 2
Antenna: MAMBA ULTRA RHCP
VTX: MAMBA TX500
Flight control: MAMBA DJI F722 MINI MK2 / 20MM
ESC: F40_BLS MINI
Size: 3.5 Inch
Voltage: MAMBA TOKA 2203.5 2650 KV for 6S /
              MAMBA TOKA 2203.5 4200 KV for 4S (Optional)
Wheelbase: 158mm

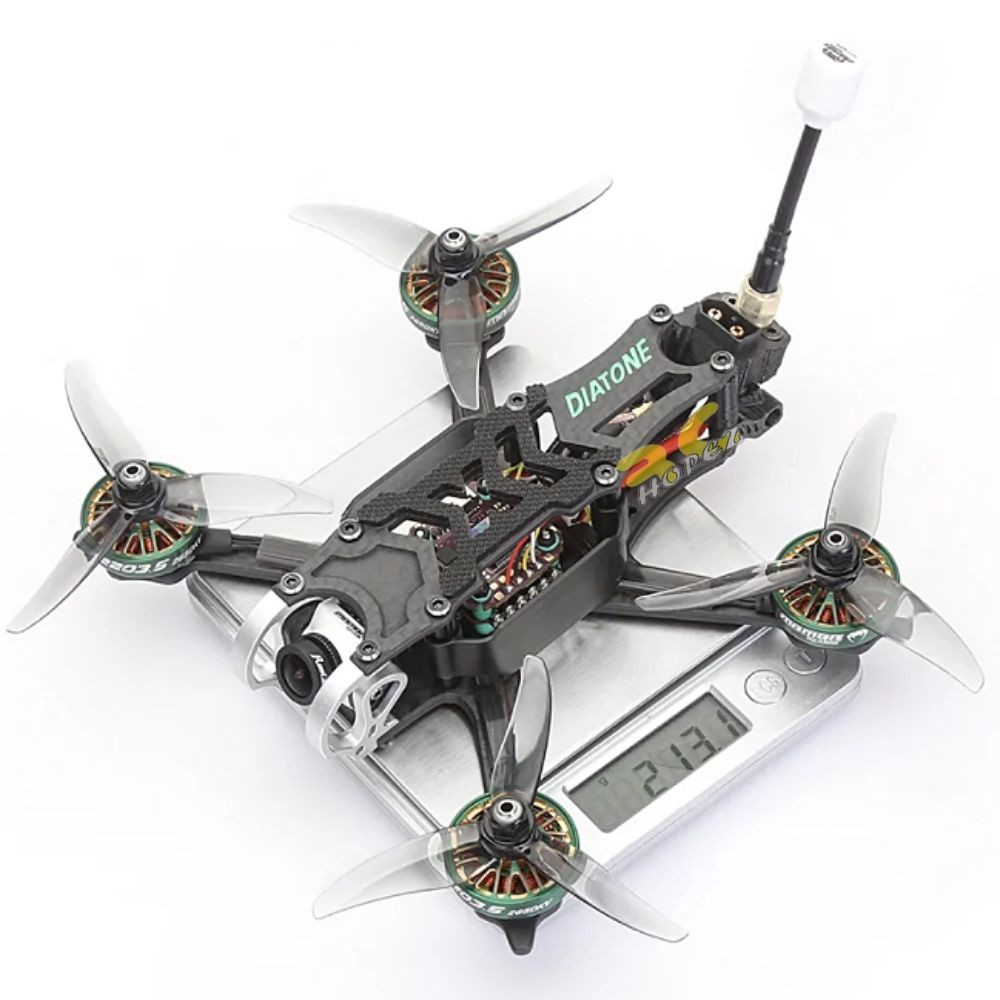

Weight: 213.1g

FC Specifications
MAMBA DJI F722 MINI MK2/20mm
MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:29×30.5×8mm
MOUNTING: 20×20,M2

ESC Specifications
MAMBA F40_BLS MINI /20mm
Input: 3~6S Lipo (12.6~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
Target： BLHeli_S CH40
SOFT: Dshot300/600
Size:29×29×5.5mm
MOUNTING: 20mm, M3/M2

MAMBA TOKA 2203.5 2650KV Motor (6S)

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop:  3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 27.64A
ldle Current：10V/0.9~1.9A
Maximum Power: 441.24W


Mamba TOKA 2203.5 4200KV Motor (4S)

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 3.5inch
Bearing：9*4*4
Shaft Diameter:4.0mm
Lead Wire Size：24AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：22mm
Stator Height:3.5mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 35.21A
ldle Current：2.2A
Maximum Power: 567.23W



Runcam Phoenix 2 :
Brand Name: Runcam
Model Name: Phoenix 2
Image Sensor: 1/2″ CMOS Sensor
Horizontal Resolution: 1000TVL
Lens: 2.1mm ​(M12)​ FOV155°(4:3)
Screen Format: 4:3 / 16:9 switchable
Mirror/Flip: Available
Signal System: PAL / NTSC Switchable
S/N Ratio: >50dB (AGC OFF)
Electronic Shutter Speed: Auto
Auto Gain Control(AGC): Auto
Min. Illumination: 0.001Lux@1.2F
WDR: Global WDR
Day/Night: Color/BW/EXT/Auto
Menu Control: Cable Control
Power: DC 5-36V
Current: 200mA@5V, 85mA@12V
Housing Material: ABS
Net Weight: 9g
Dimensions: 19mm*19mm*20mm

Recommend Battery (NOT Included)：
6S 650-850mah   6-7 mins
4s 850-1000mah   6-7 mins

Battery Connector : XT60

Package Included:
1x Roma F35 Analog 3.5Inch 4S/6S (Optional)  FPV Racing Drone
1x GF-3520 propeller
1x Buzzer
2x Battery belt
1x M2 screw accessory kit
1x M3 screw accessory kit
1x 20mm PC isolation plate
1x Data Cable
1X Receiver (Optional)
