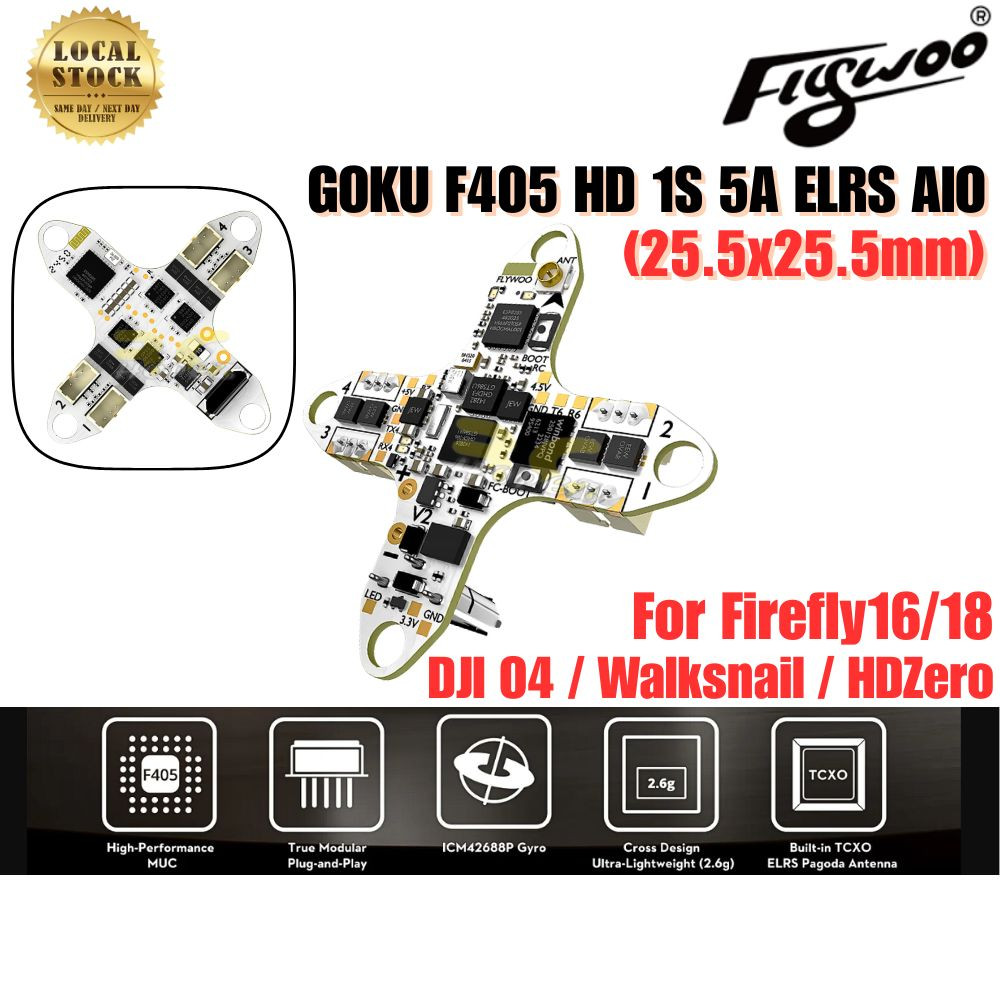

Flywoo GOKU F405 HD 1S 5A ELRS AIO 25.5×25.5mm For Firefly16 Firefly18 DJI O4 Walksnail HDZero FPV Racing Drone FW4769

Flywoo GOKU F405 HD 1S 5A ELRS AIO 25.5×25.5mm For Firefly16 Firefly18 DJI O4 Walksnail HDZero FPV Racing Drone FW4769

Description:

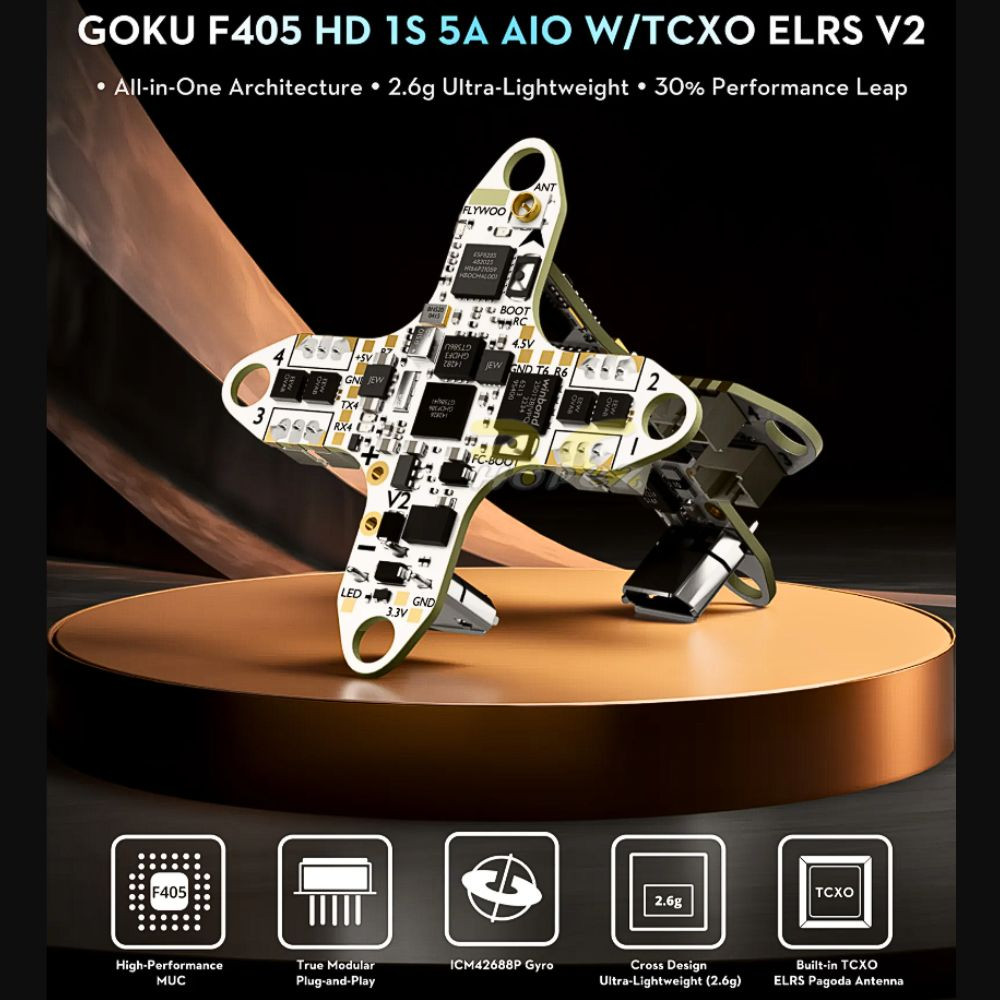

This  ​​Flywoo GOKU F405 HD 1S 5A AIO V2 is tailored for ultra-micro 1S HD drones, building on V1’s strengths with key upgrades.

At its core is the STM32F405 BGA micro MCU, delivering 168MHz high-frequency performance, low power consumption, and a mere 2.6g weight. Its innovative cross-shaped design fits all 1S frame kits.

Key V2 upgrades: On-board Flywoo 1S O4 5V BEC supports a minimum operating voltage of 2.6V when paired with DJI O4 VTX. It matches V1 exactly in weight, performance, and shape for a seamless classic experience.

Also integrated are an ELRS 2.4GHz receiver and TXCO (Temperature-Compensated Crystal Oscillator) for stable, low-latency signals. On-board ICM42688p gyro and 8MB Betaflight black box enable flight data recording and analysis—making it an ideal choice for both pros and beginners building ultra-micro 1S HD drones.

Highlights:
– On board FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
– Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
– STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
– Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory
– Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
– Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

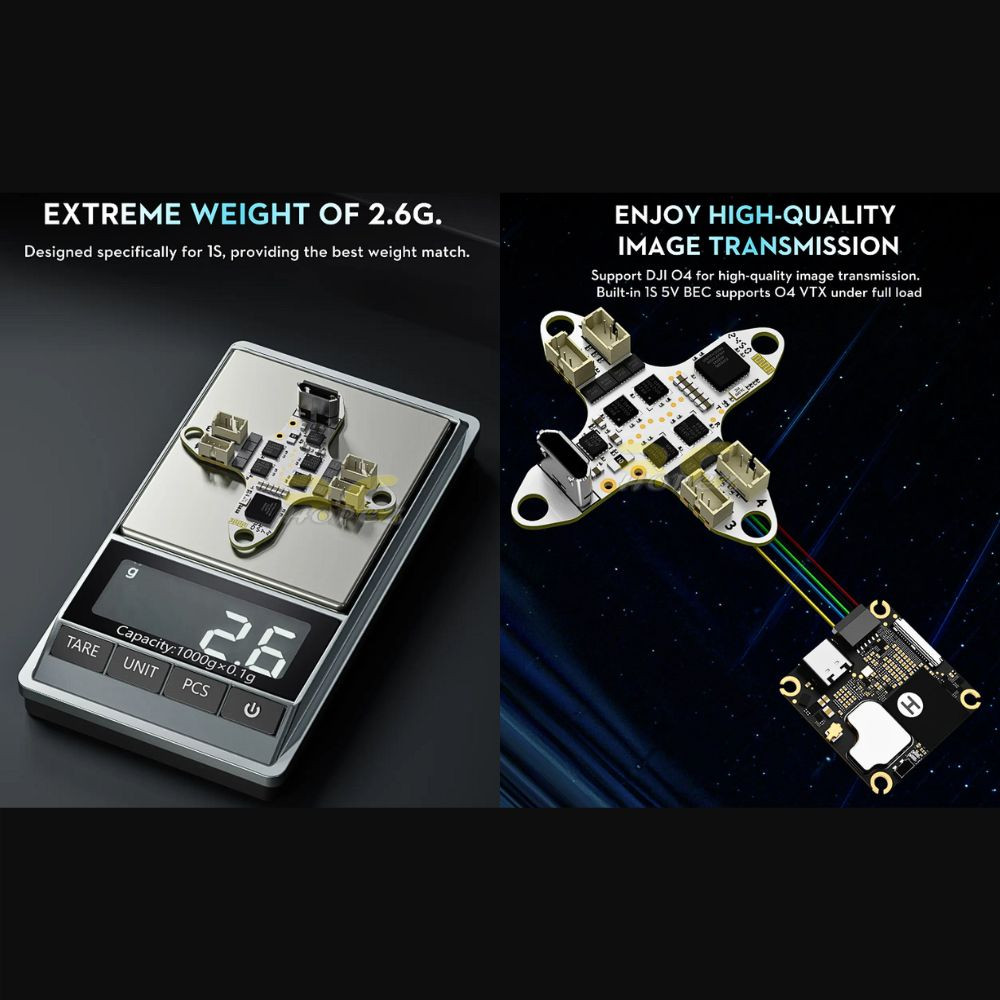

– Weighs just 2.6g without motor connectors—the industry's lightest 1S AIO solution
– Pre-soldered motor connector

Specifications：

Flight Controller
GOKU F405 HD 1S 1S 5A AIO V2.0  w/TCXO ELRS
MCU: STM32F405BGA
IMU: ICM42688P
Barometer: SPL06
Black Box: 8M
OSD Support: No

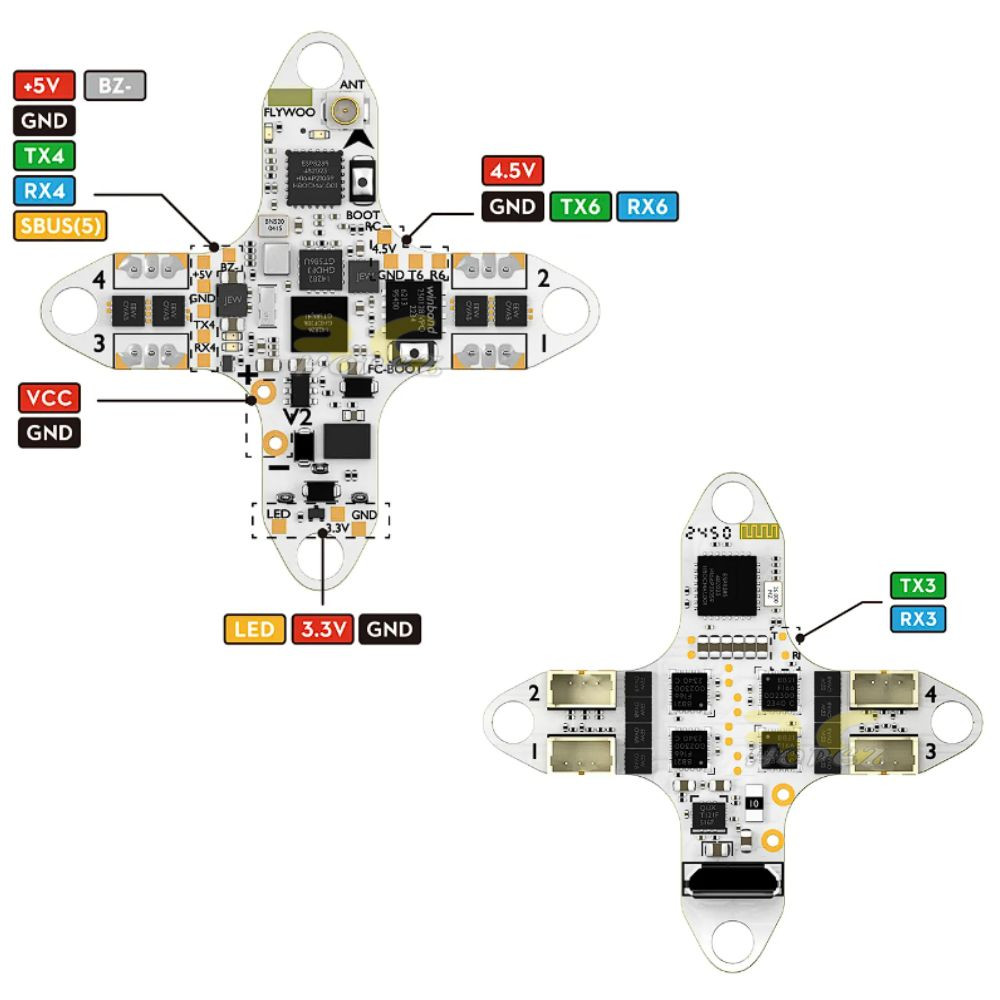

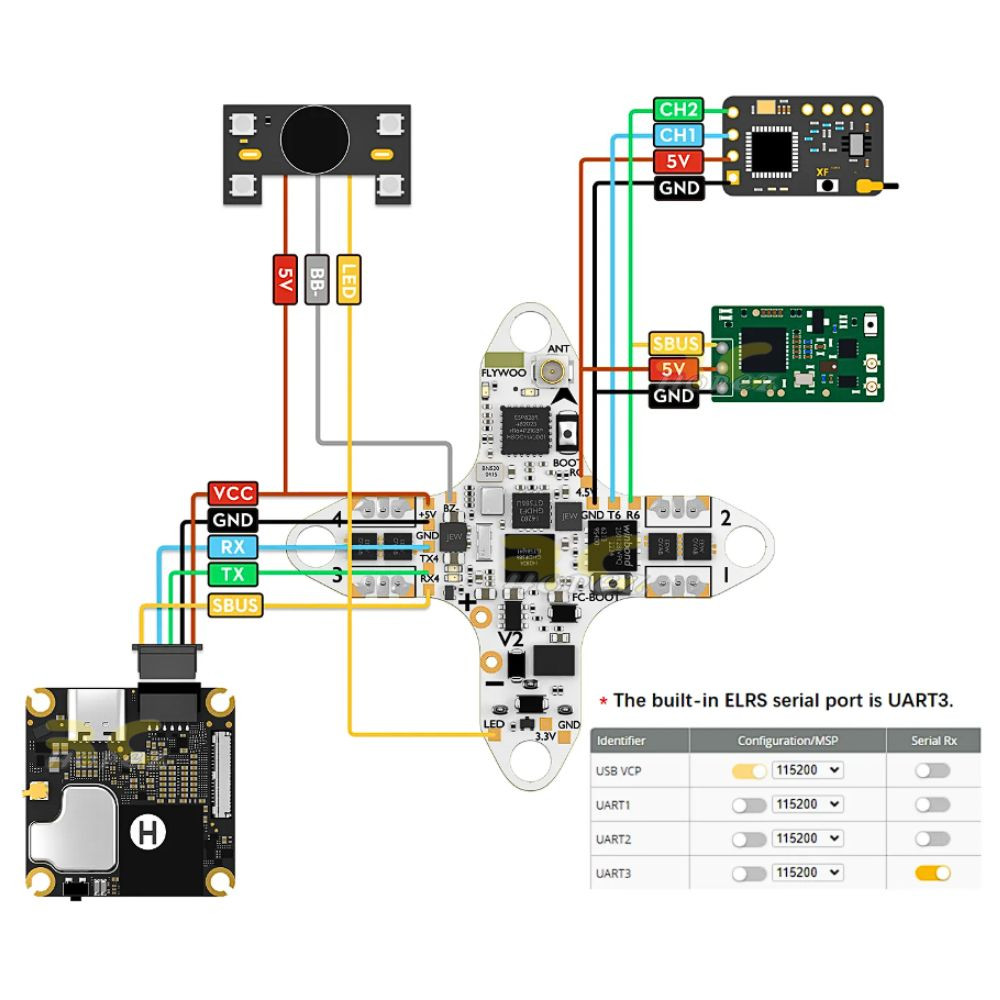

UART: UART 3（For ELRS),UART4,UART5(SBUS),UART
Protocols: CRSF, SBUS, iBus, Spektrum
BEC: BEC:5V 3.0A MAX（Support DJI O4 Air Unit）
RX: Flywoo TCXO EL24E 2400 RX 3.0.0
FC Firmware: FLYWOOF405S_AIO

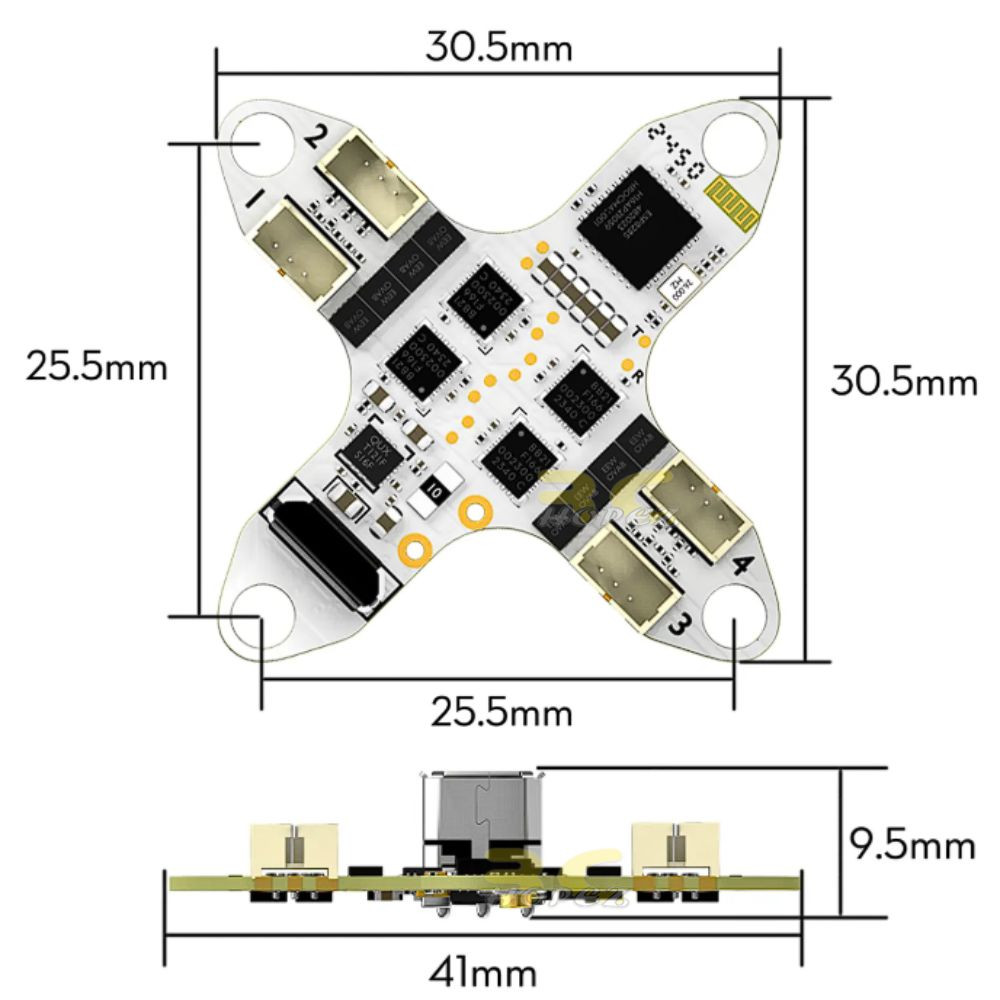

Dimensions: 30.5 x 30.5mm
Mounting Holes: Standard 25.5/25.5mm square to center of holes

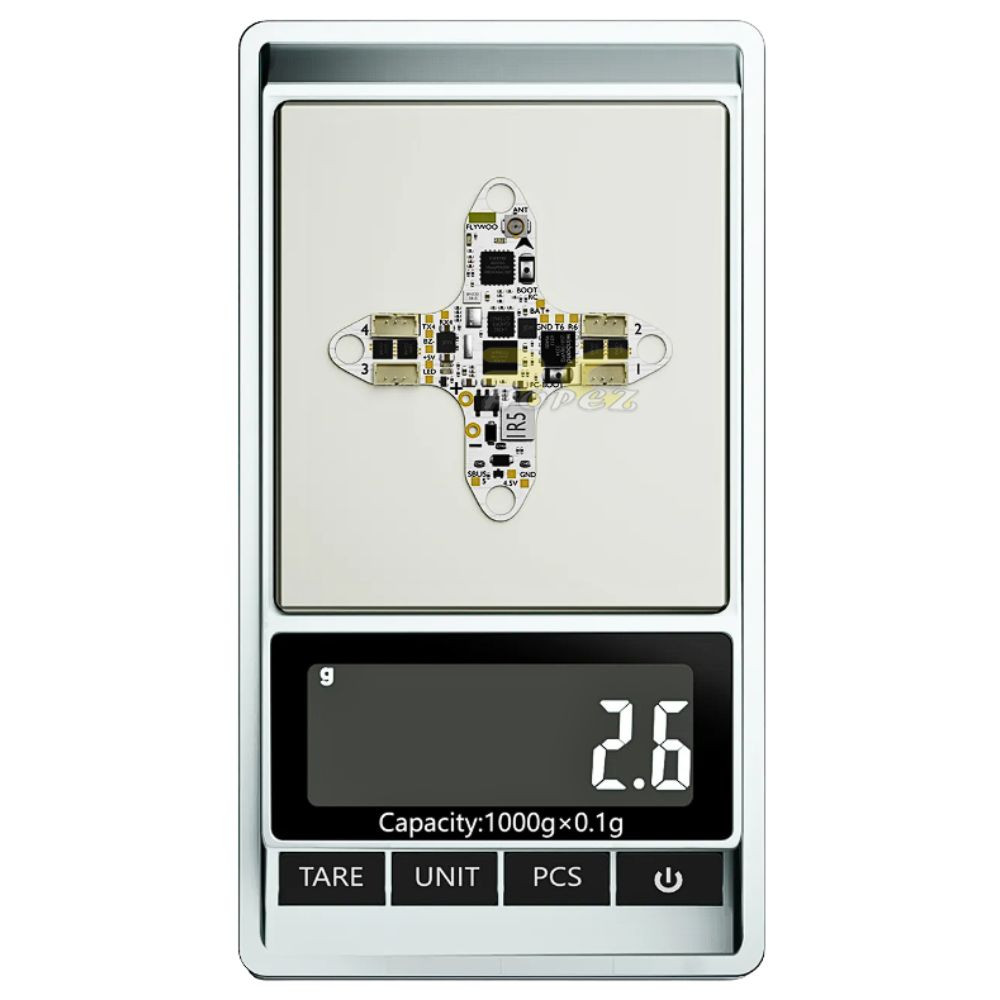

Weight: 2.6g

Onboard 4in1 ESC
Power input: 1S Only
Current: 5A continuous, 8A peak
ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
Digital signal protocol: DShot300, DShot600
Motor Connector: JST1.25
Battery connector: A30

Package Included:
1x GOKU F405 HD 1S 5A ELRS AIO V2 (pre-soldered motor connectors)
1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL-40mm
5x M2*6.6 Shock-absorbing ball
1x A30 Power cable
