GEPRC DarkStar16 FPV Drone DJI O4 PRO /WTFPV Without Camera VTX 2S 1.6 Inch PNP/ELRS 2.4G Freestyle TinyWhoop GEP-DS16

GEPRC DarkStar16 FPV Drone DJI O4 PRO /WTFPV Without Camera VTX 2S 1.6 Inch PNP/ELRS 2.4G Freestyle TinyWhoop GEP-DS16

Note : Please take note for variation WTFPV does NOT come with VTX and camera, you need to buy its separately and install it by your ownself.

Summary
The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.

Featuring a 1.6-inch frame and the DJI O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.

The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.

The Darkstar16 offers a high-performance, creative flight experience.

Feature
1. The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.
2. Quick-release design lets you detach the VTX module by removing just 6 screws.
3. Equipped with the DJI O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.
4. Lightweight molding strikes a balance between durability and performance.
5. The compact 1.6-inch frame offers portability for efficient filming.
6. The fixed XT30 power connector ensures simple on/off operation.

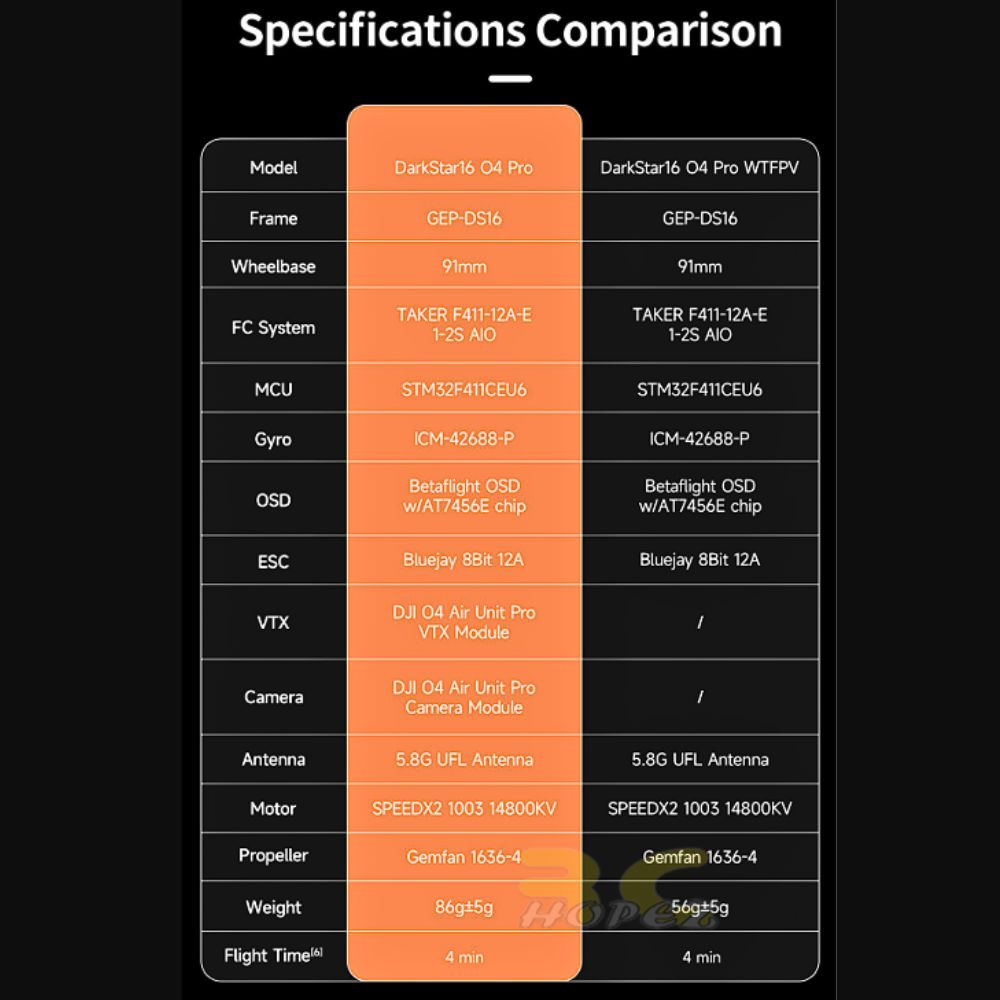

Specifications

**GEPRC DarkStar16 DJI O4 Pro
Frame: GEP-DS16
Wheelbase: 91mm
FC System: TAKER F411-12A-E 1-2S AIO
MCU: STM32F411CEU6
Gyro: ICM42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: Bluejay 8Bit 12A
VTX: DJI O4 Air Unit Pro VTX Module
Camera: DJI O4 Air Unit Pro Camera Module
Antenna: 5.8G UFL antenna
Motor: SPEEDX2 1003 14800KV Shaft 1.5mm
Propeller: Gemfan 1636-4 40mm V2.0 Single Hole 1.5mm Shaft
DarkStar16 O4 PNP (Built-in O4 air unit Pro receiver) Version Weight: 86g±5g
Receiver: PNP / ELRS2.4G (Optional)

**GEPRC DarkStar16 O4 Pro WTFPV (NO VTX & Camera)
Frame: GEP-DS16
Wheelbase: 91mm
FC System: TAKER F411-12A-E 1-2S AIO
MCU: STM32F411CEU6
Gyro: ICM42688-P
OSD: Betaflight OSD w/AT7456E chip
ESC: Bluejay 8Bit 12A
VTX: /
Camera: /
Antenna: 5.8G UFL antenna
Motor: SPEEDX2 1003 14800KV Shaft 1.5mm
Propeller: Gemfan 1636-4 40mm V2.0 Single Hole 1.5mm Shaft
GEPRC DarkStar16 WTFPV PNP Version Weight: 56g±5g
Receiver: PNP / ELRS2.4G (Optinal)

Recommended battery (NOT Included) : LiHV 2S 530mAh
Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

*Recommended (NOT Included) :
GEPRC Storm 530mAh 2S 90C LiHV Battery (L64*W17*H13mm) With XT30 Plug
Gaoneng GNB 530mAh 90C 2S LiHV Battery (L64*W17*H13mm) with XT30 Plug

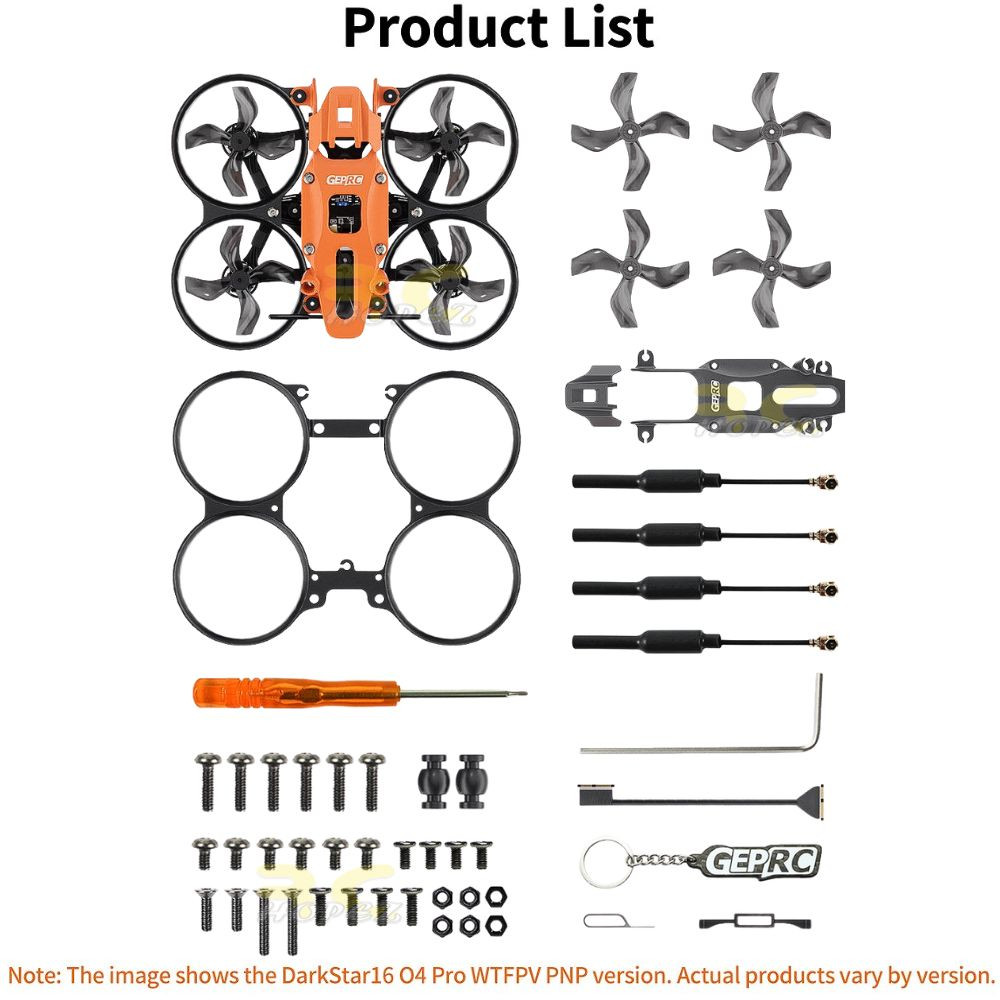

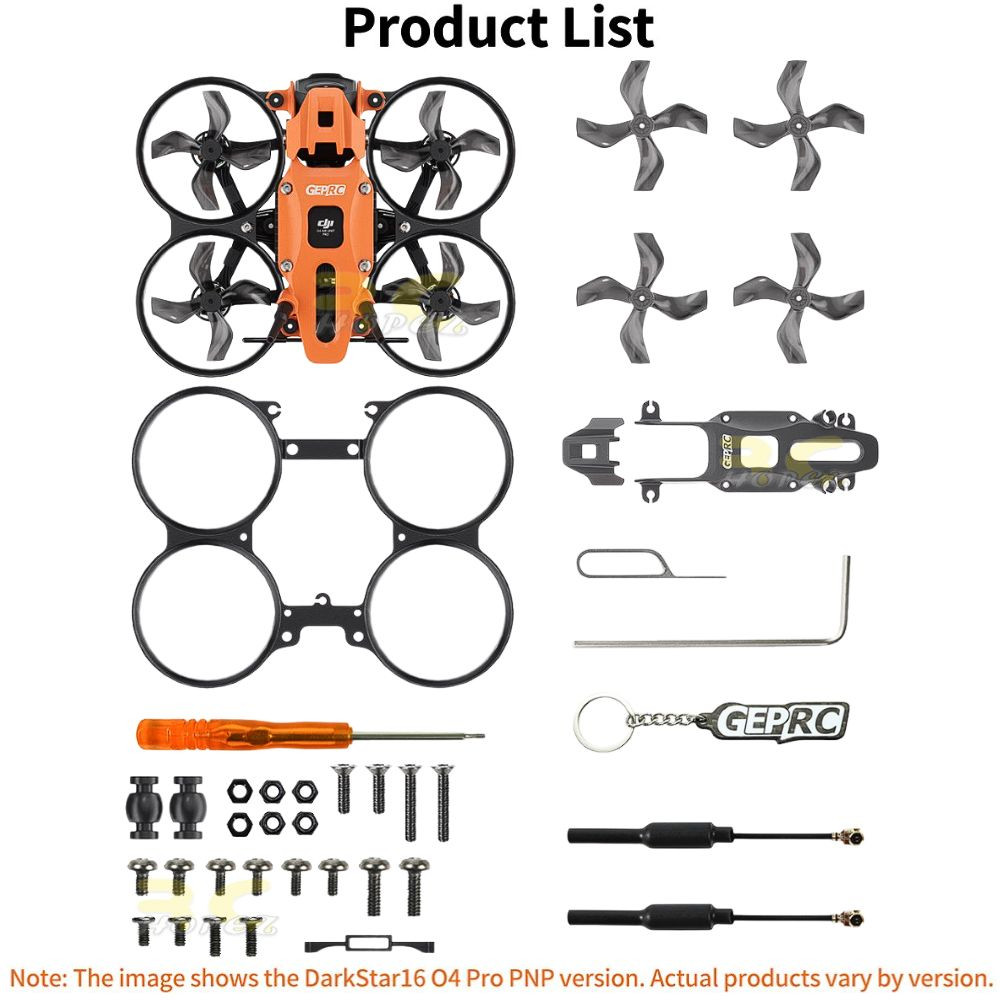

Includes (Optional) :

GEPRC DarkStar16 DJI O4 Pro
1 x DarkStar16 O4 Pro
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (4CW+4CCW)
1 x Plum screwdriver
1 x Spare screw pack
1 x Keychain

OR
