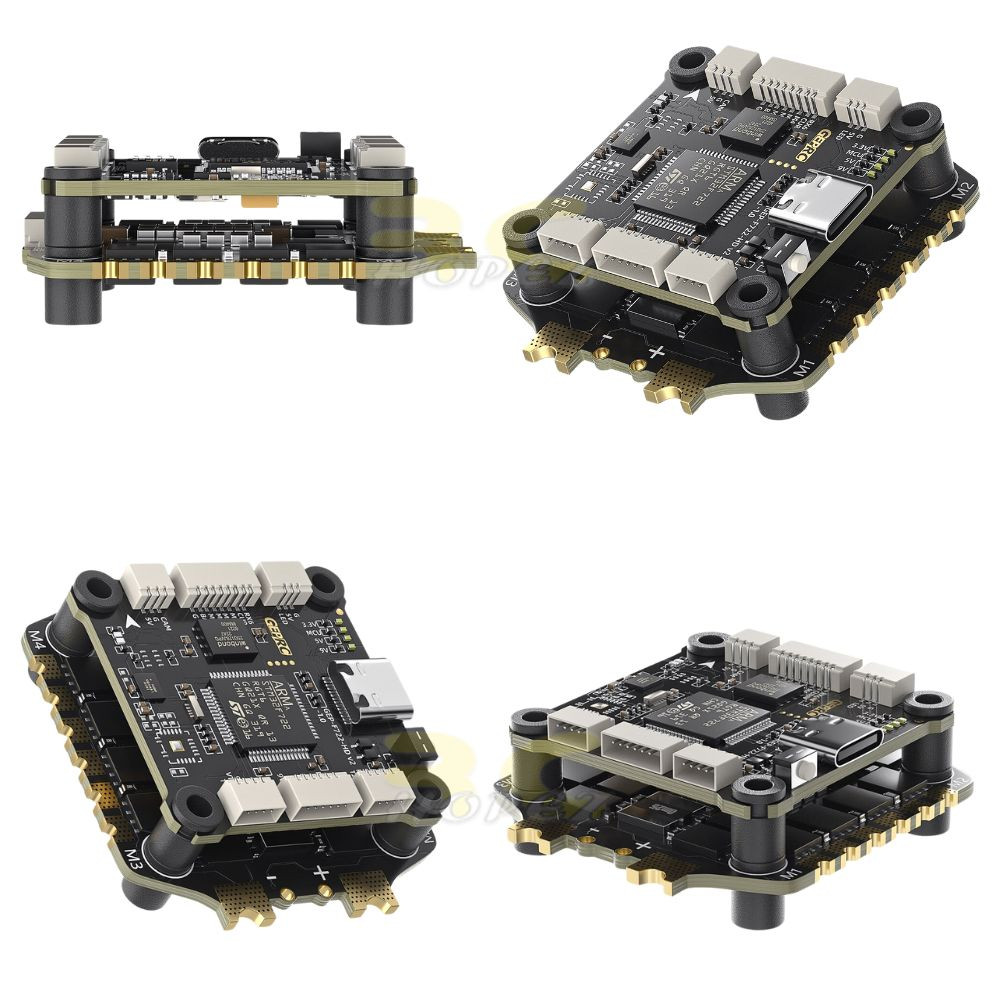

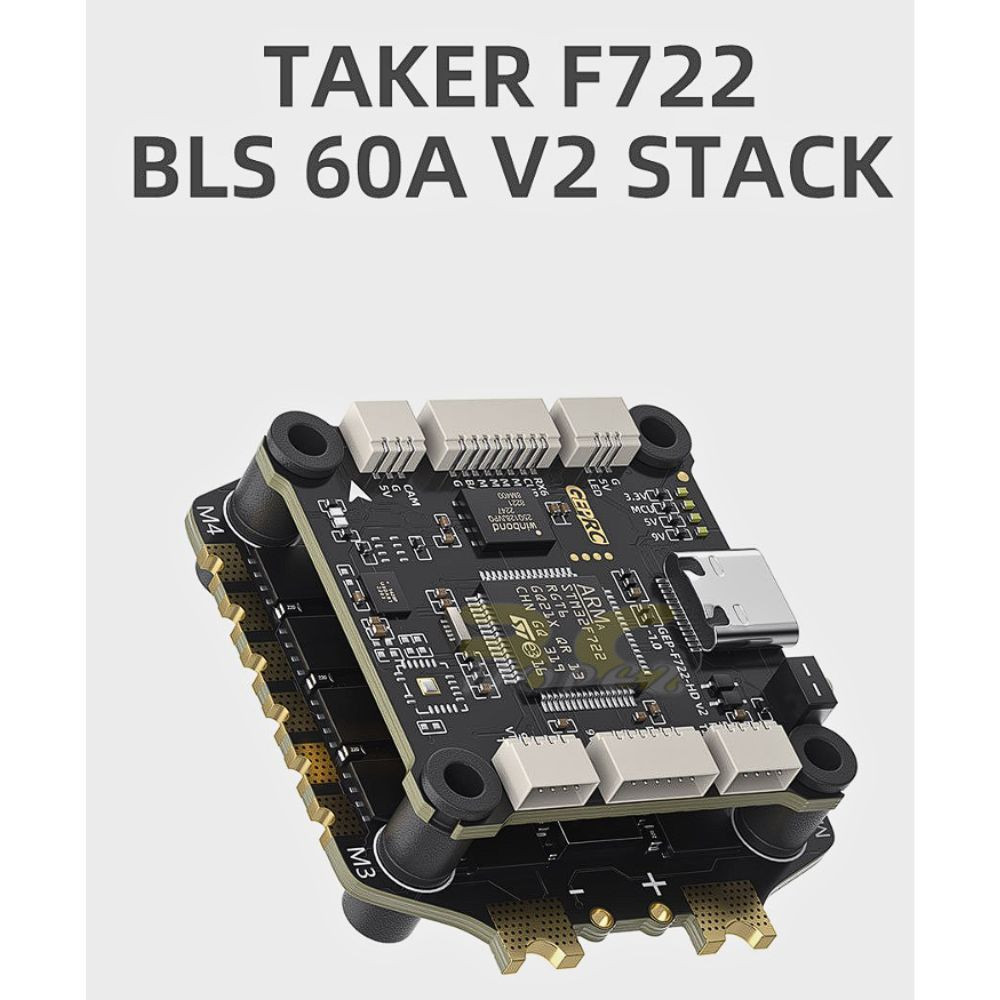

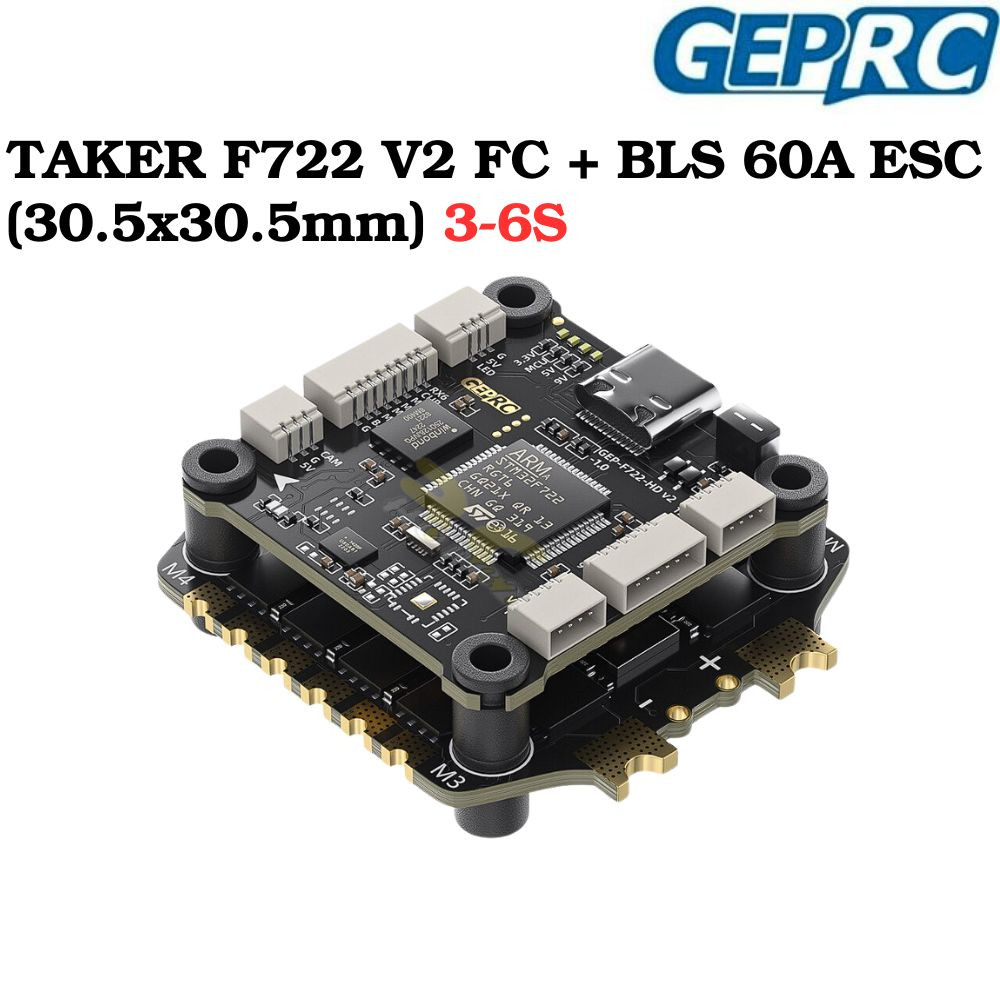

GEPRC TAKER F722 BLS 60A V2 STACK 4IN1 ESC Flight Controller 30.5×30.5mm for Vapor-D5 X5 Analog HD FPV Drone GEP-F722-60

GEPRC TAKER F722 BLS 60A V2 STACK 4IN1 ESC Flight Controller 30.5×30.5mm for Vapor-D5 X5 Analog HD FPV Drone GEP-F722-60

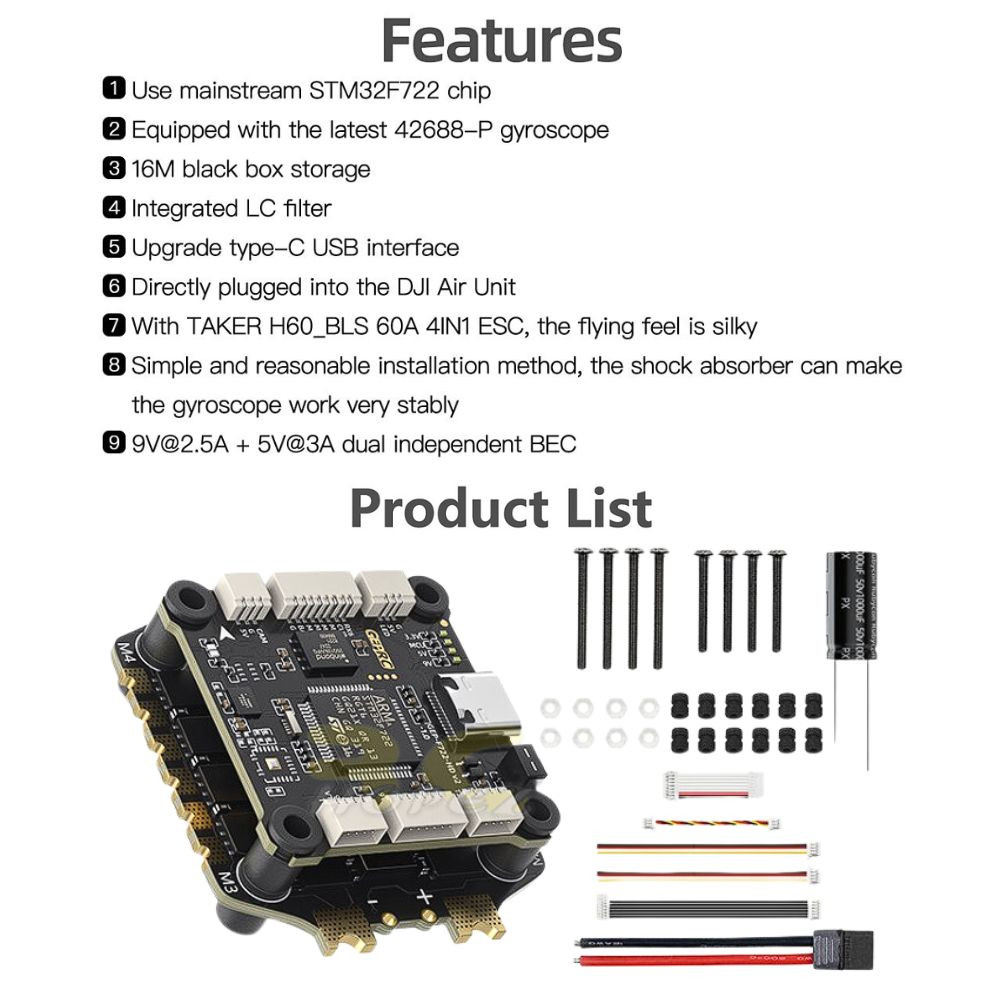

Features
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably9.  [email protected] + 5V@3A dual independent BEC

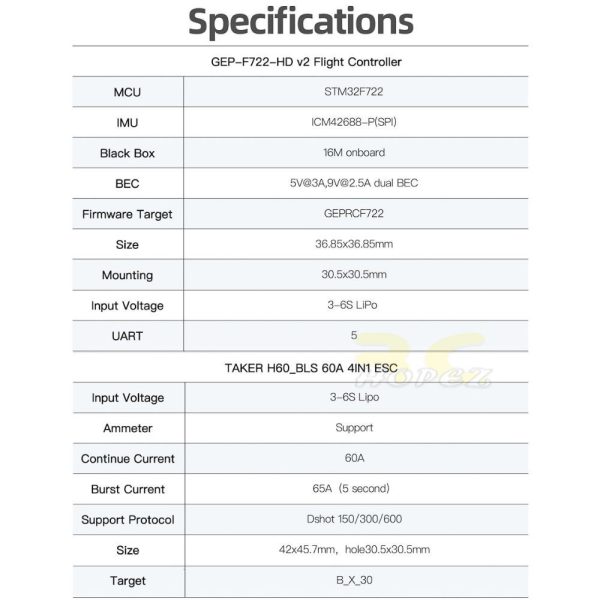

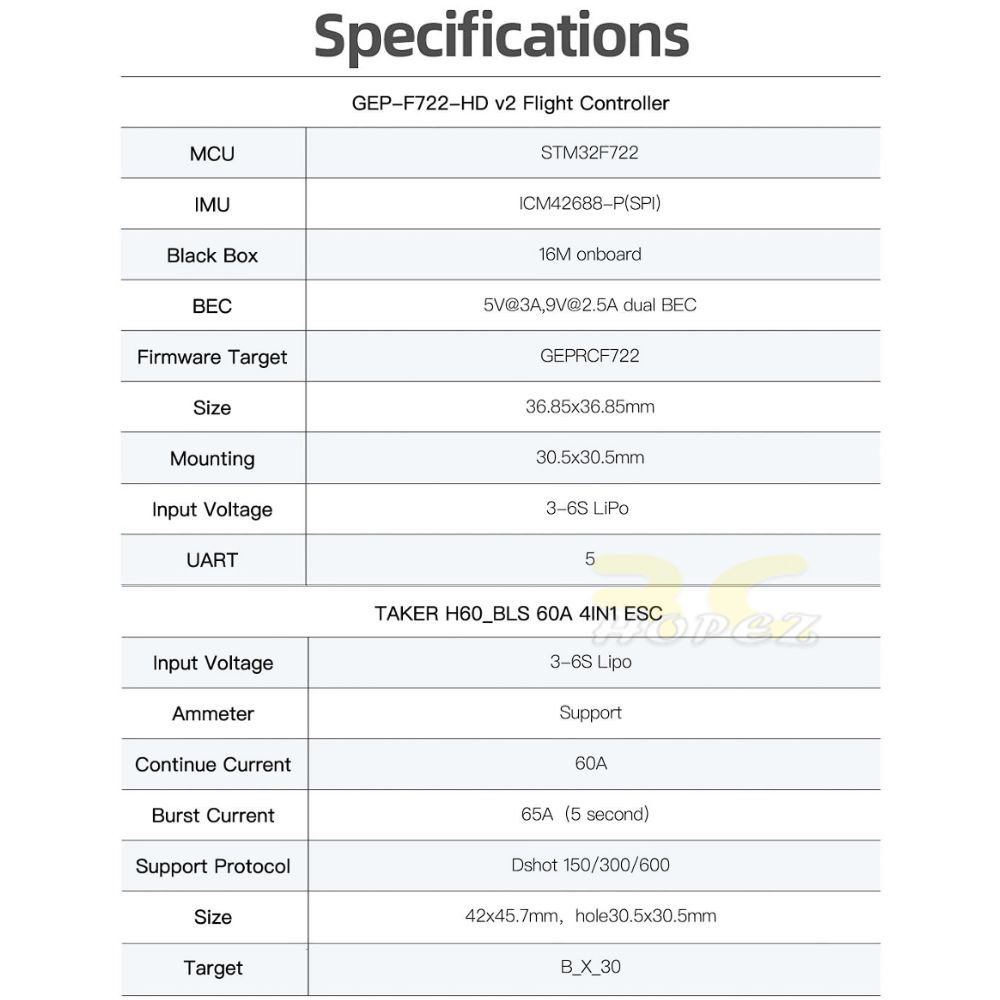

Specifications

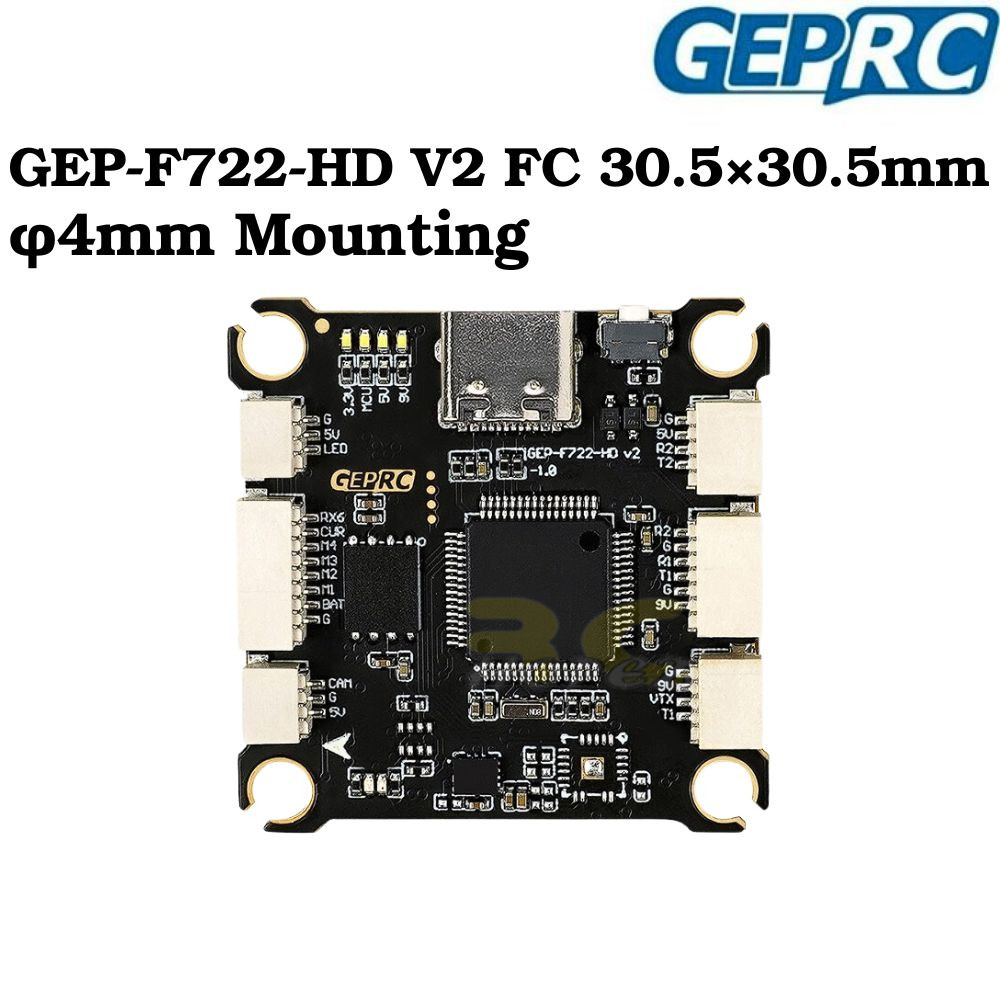

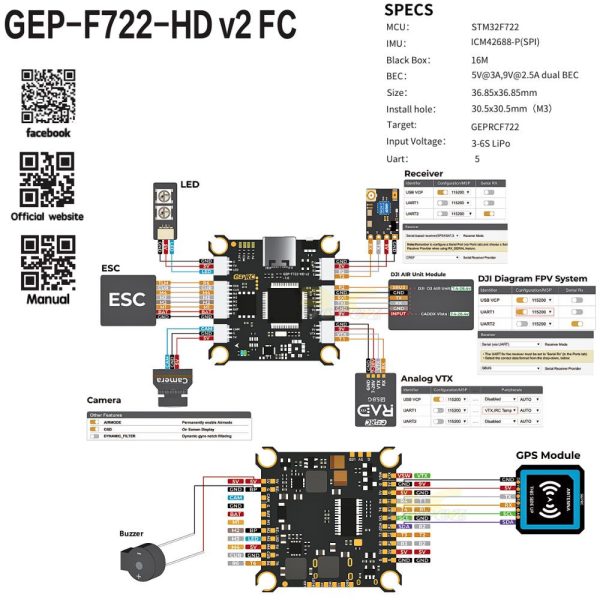

GEP-F722-HD V2 Flight Controller
MCU：STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,[email protected] dual BEC
Firmware Target：GEPRCF722
Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g

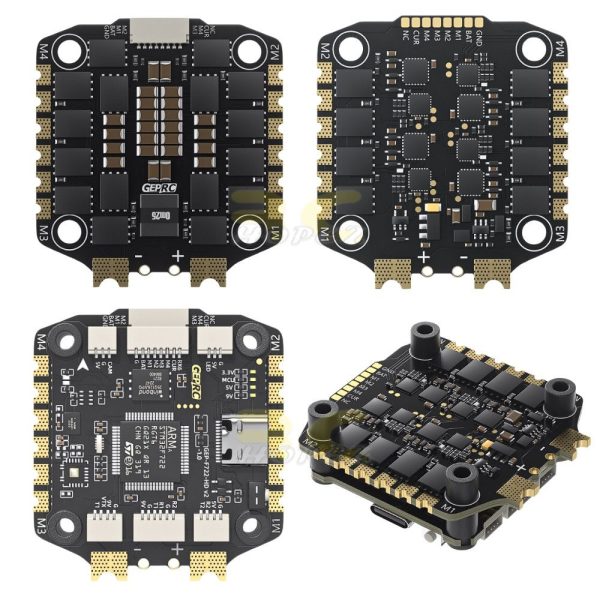

TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：60A
Burst Current：65A（5 second）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30

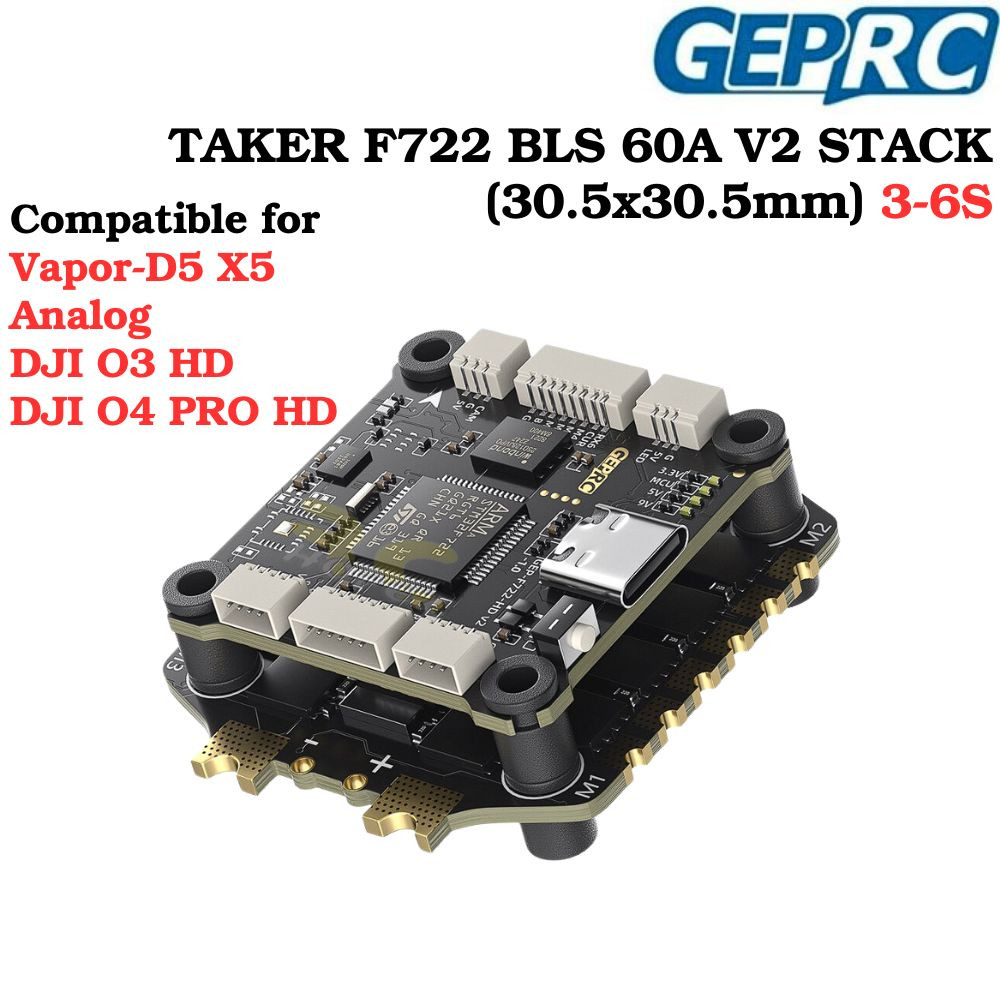

Compatible Models:
Vapor-D5 X5 Analog / DJI HD O3 / DJI O4 Pro
Suitable for 5 Inch Racing FPV quads

Includes (Optional) :

FC
1 x GEP-F722-HD V2 Flight Controller

OR

FC + ESC
1 x GEP-F722-HD V2 Flight Controller
1 x TAKER H60_BLS 60A 4IN1 ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4 pin silicone cable
1 x Camera connection cable
