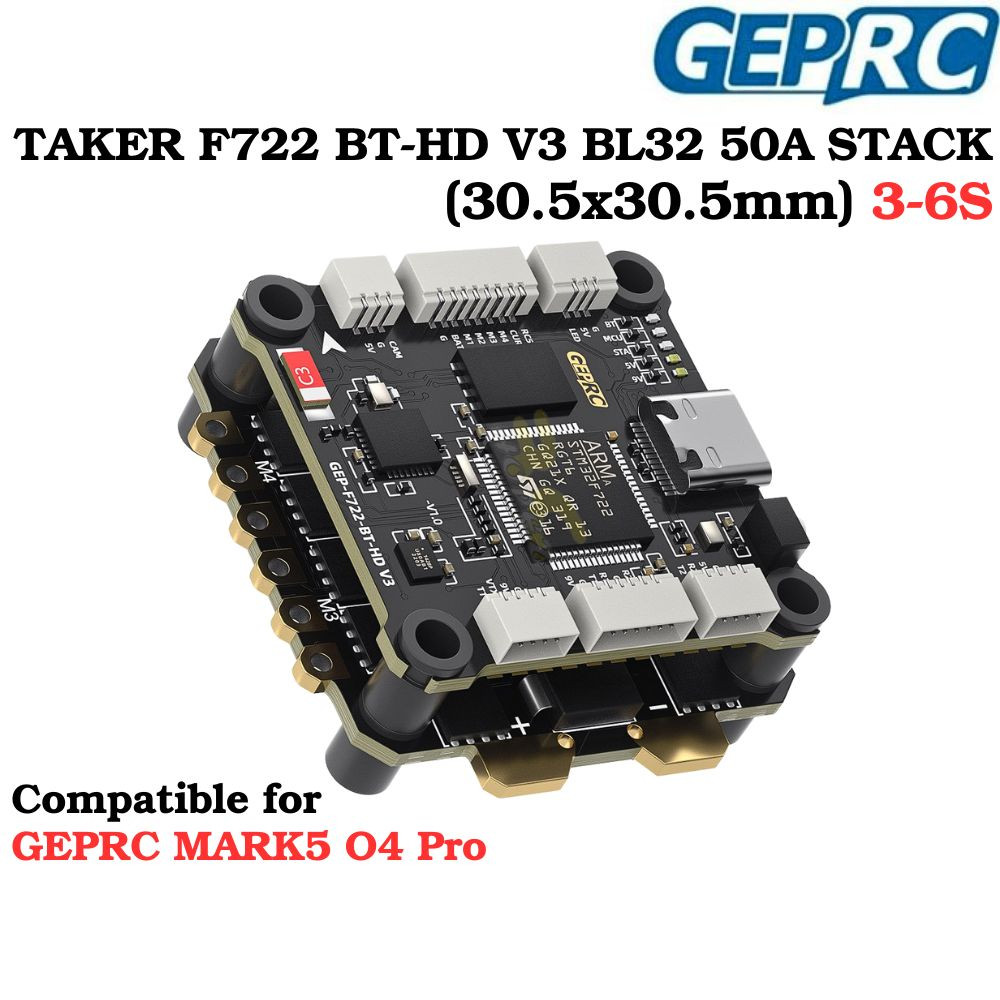

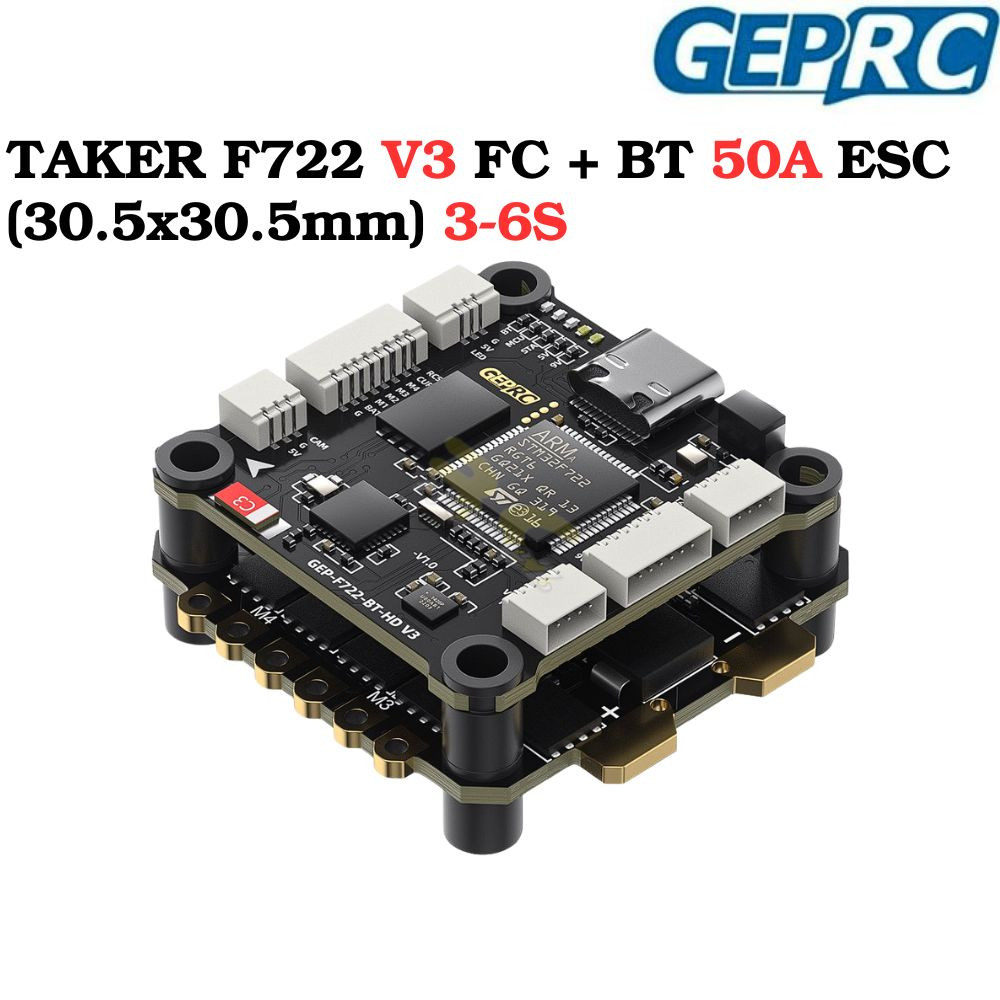

GEPRC TAKER F722 BT-HD V3 STACK BL32 50A 96K 4IN1 ESC 3-6S 30.5×30.5mm for MARK5 DJI O4 Pro HD FPV Drone GEP7542

GEPRC TAKER F722 BT-HD V3 STACK BL32 50A 96K 4IN1 ESC 3-6S 30.5×30.5mm for MARK5 DJI O4 Pro HD FPV Drone GEP7542

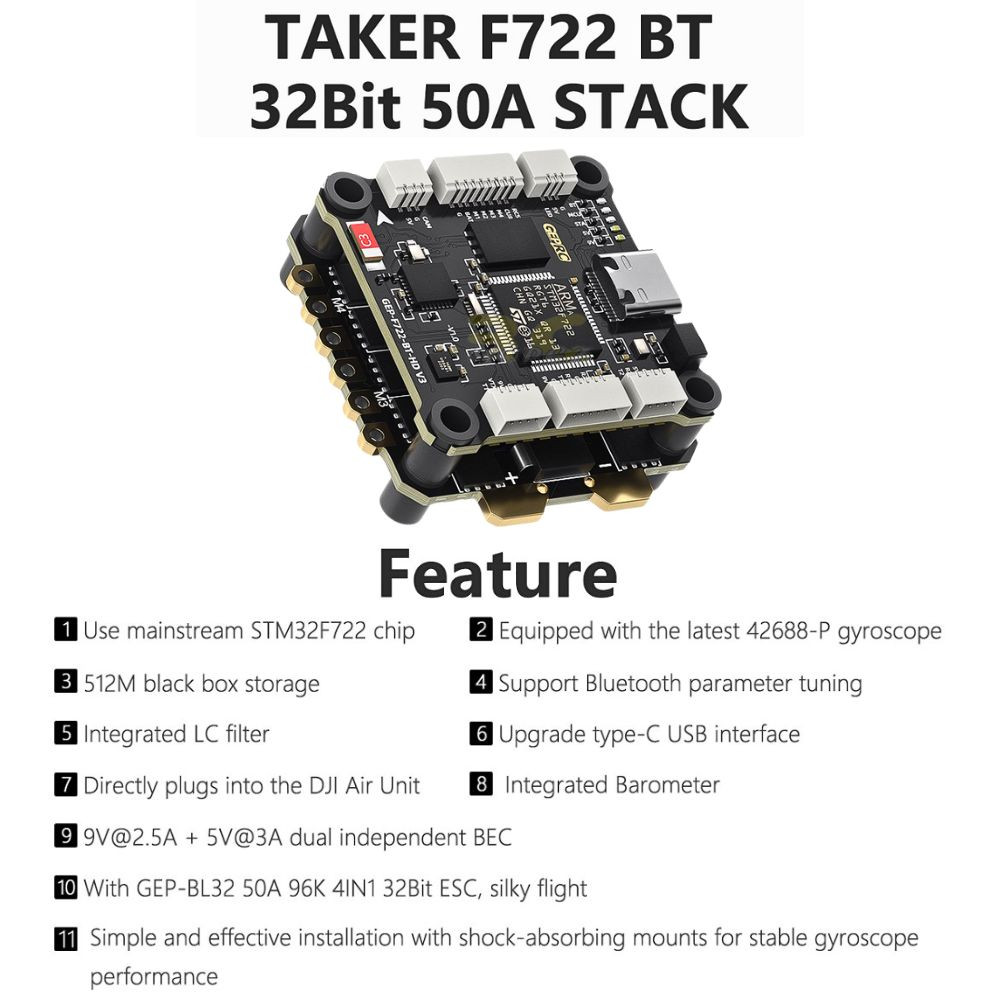

Feature
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. [email protected] + 5V@3A dual independent BEC

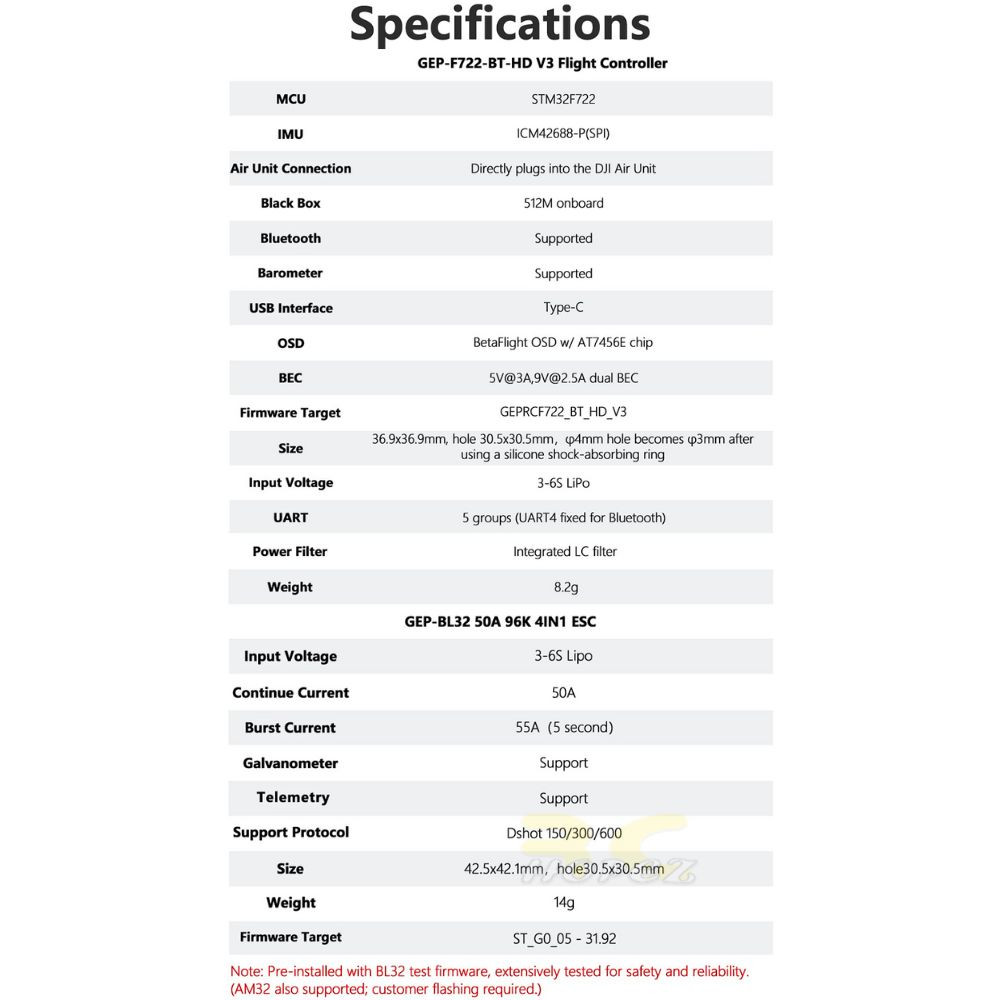

Specifications

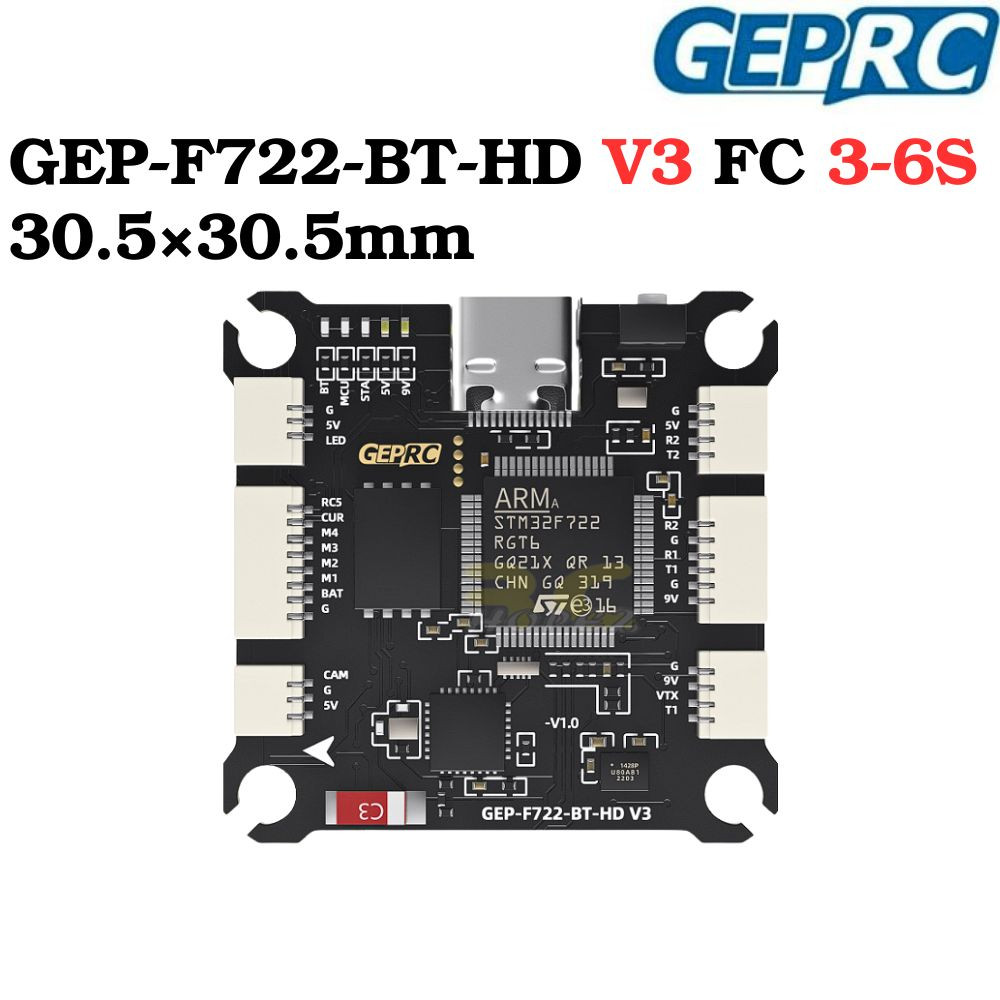

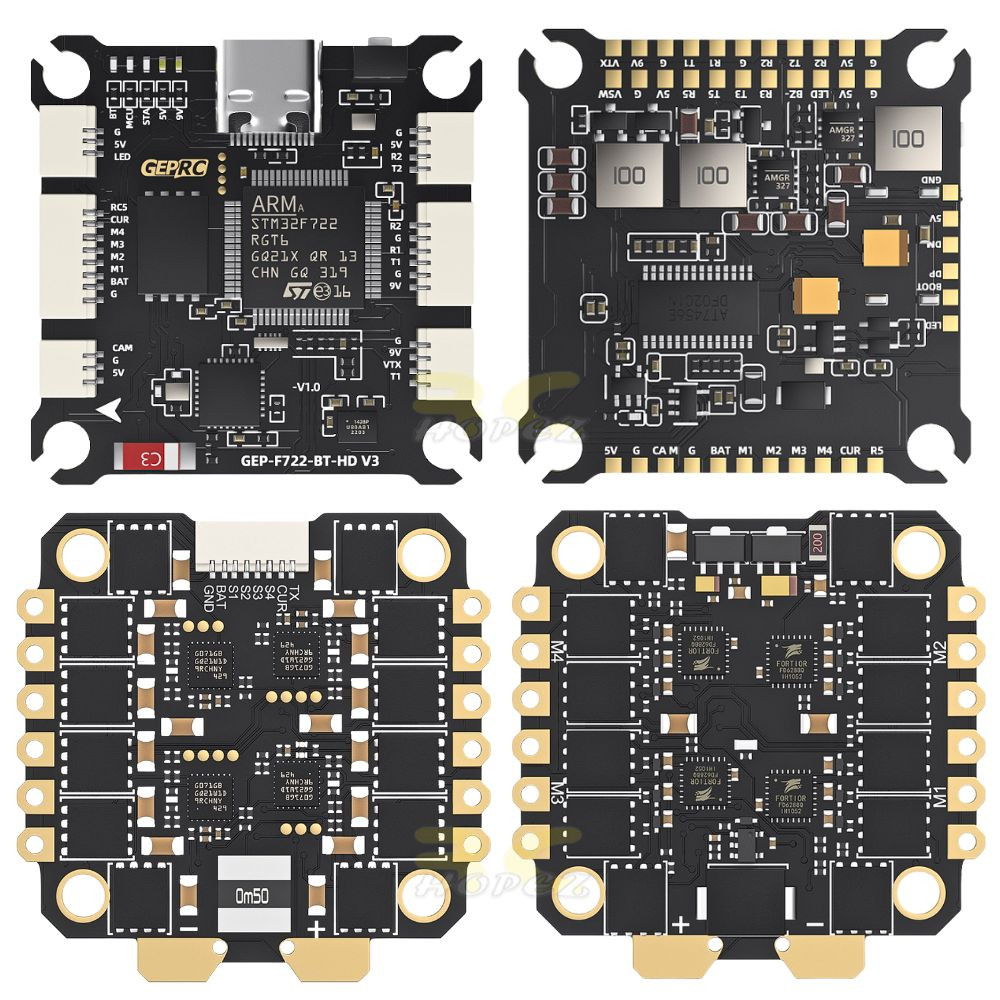

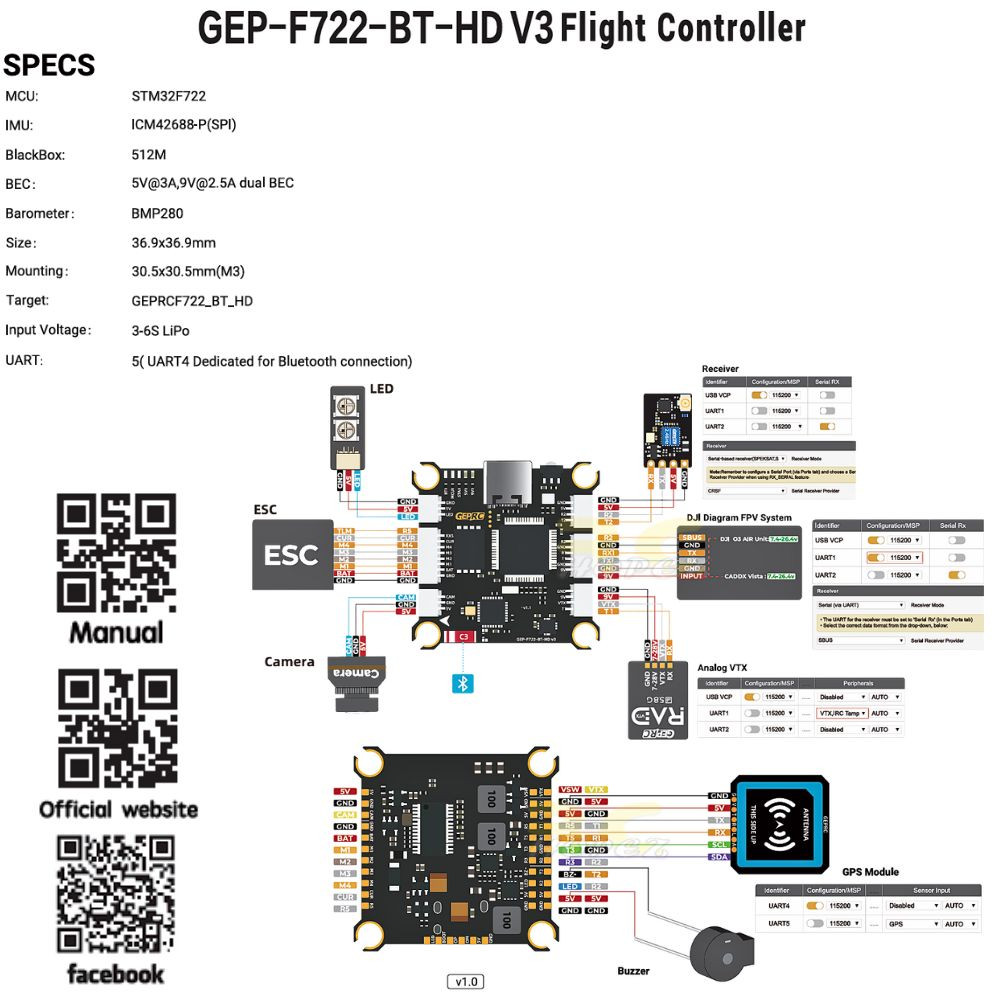

GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, [email protected] dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

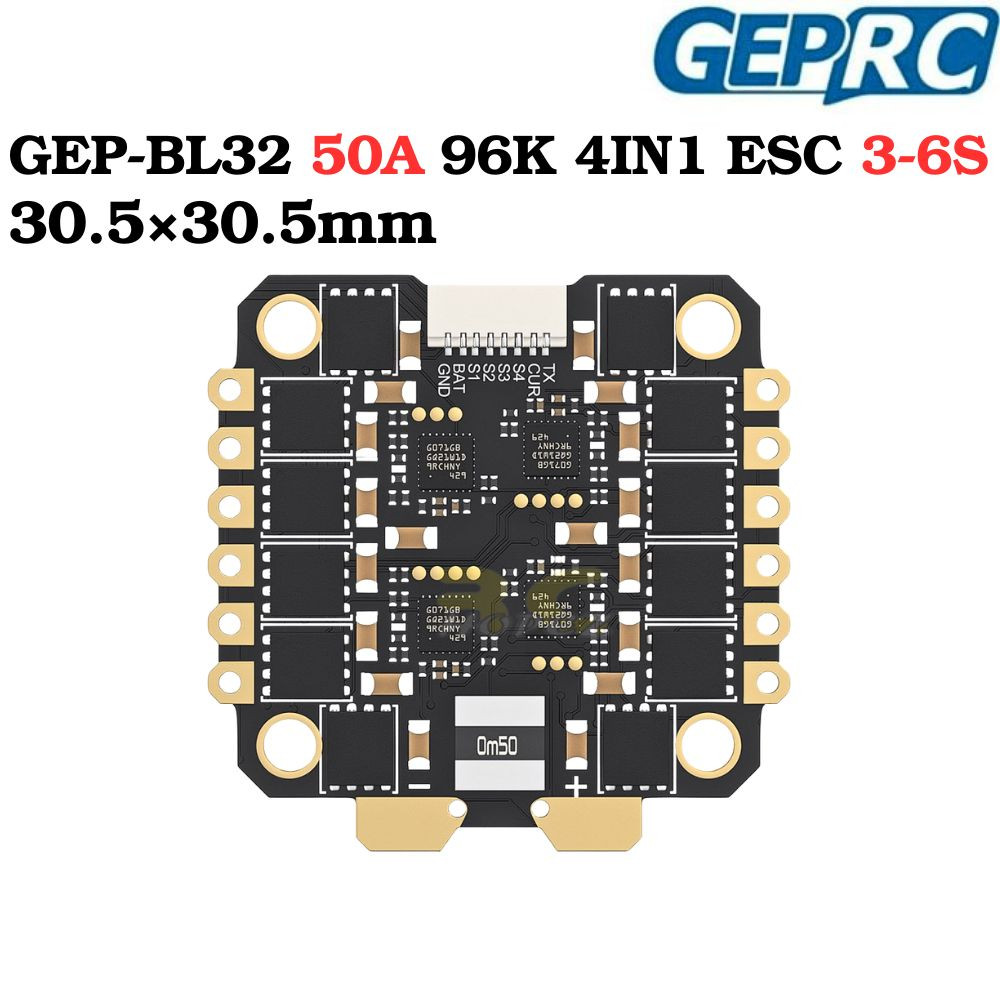

GEP-BL32 50A 96K 4IN1 ESC
Model: GEP-BL32 50A 96K 4IN1 ESC
Input Voltage: 3-6S Lipo
Continue Current：50A
Burst Current: 55A (5 second)
Galvanometer：Support
Telemetry: Support
Support Protocol: Dshot 150/300/600
Size：42.5×42.1mm，hole30.5×30.5mm
Weight：14g
Target: ST_G0_05 – 31.92
Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
(AM32 also supported; customer flashing required.)

Compatible Models:
MARK5 DJI O4 Pro HD
Suitable for 5 Inch Racing FPV quads

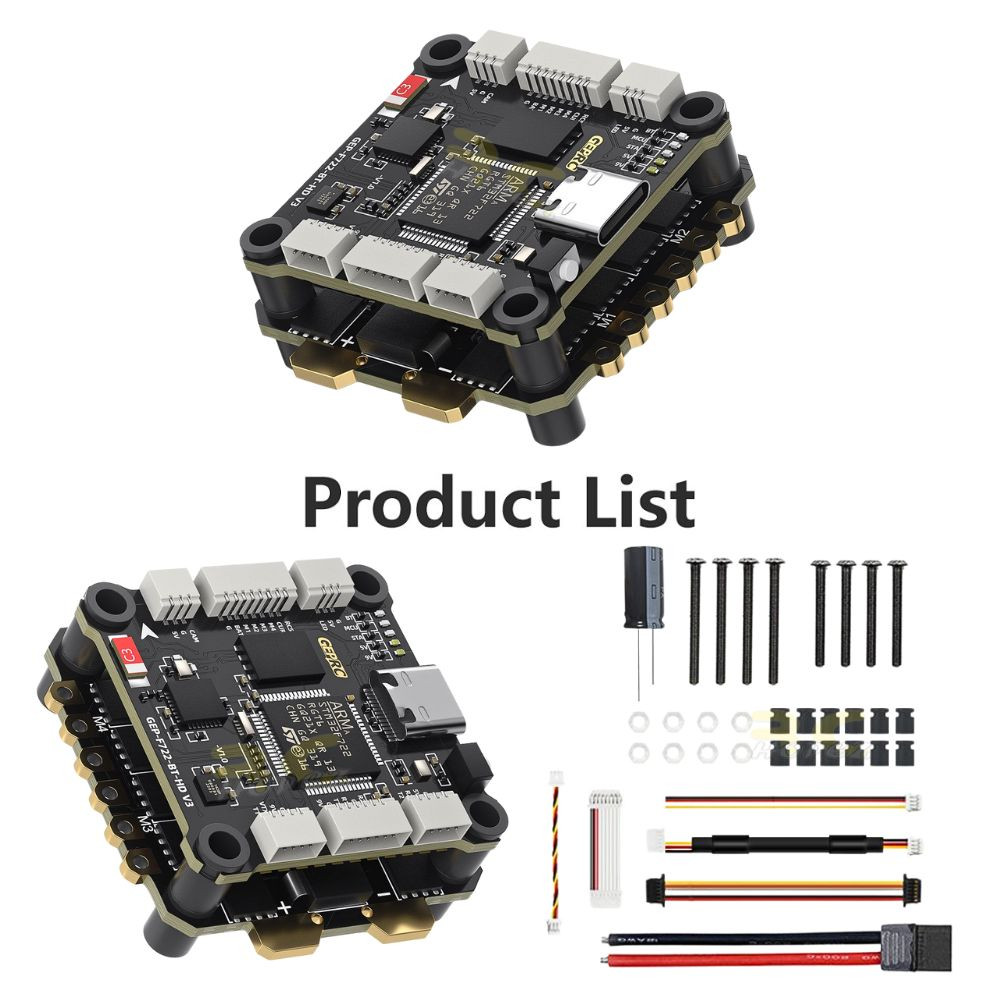

Includes (Optional) :

FC
1 x GEP-F722-HD V2 Flight Controller
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
4 x Nylon nuts
4 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable

OR

ESC
1 x GEP-BL32 50A 96K 4IN1ESC
1 x electrolytic capacitor(50V 1000uF)
1 x FC adapter cable(SH1.0 8pin 30mm)
1 x XT60 Power cable(12AWG 110mm)
4 x Silicone anti-shake pads(M3)

OR

FC + ESC
1 x GEP-F722-HD V2 Flight Controller
1 x GEP-BL32 50A 96K 4IN1ESC
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
4 x Silicone anti-shake pads
