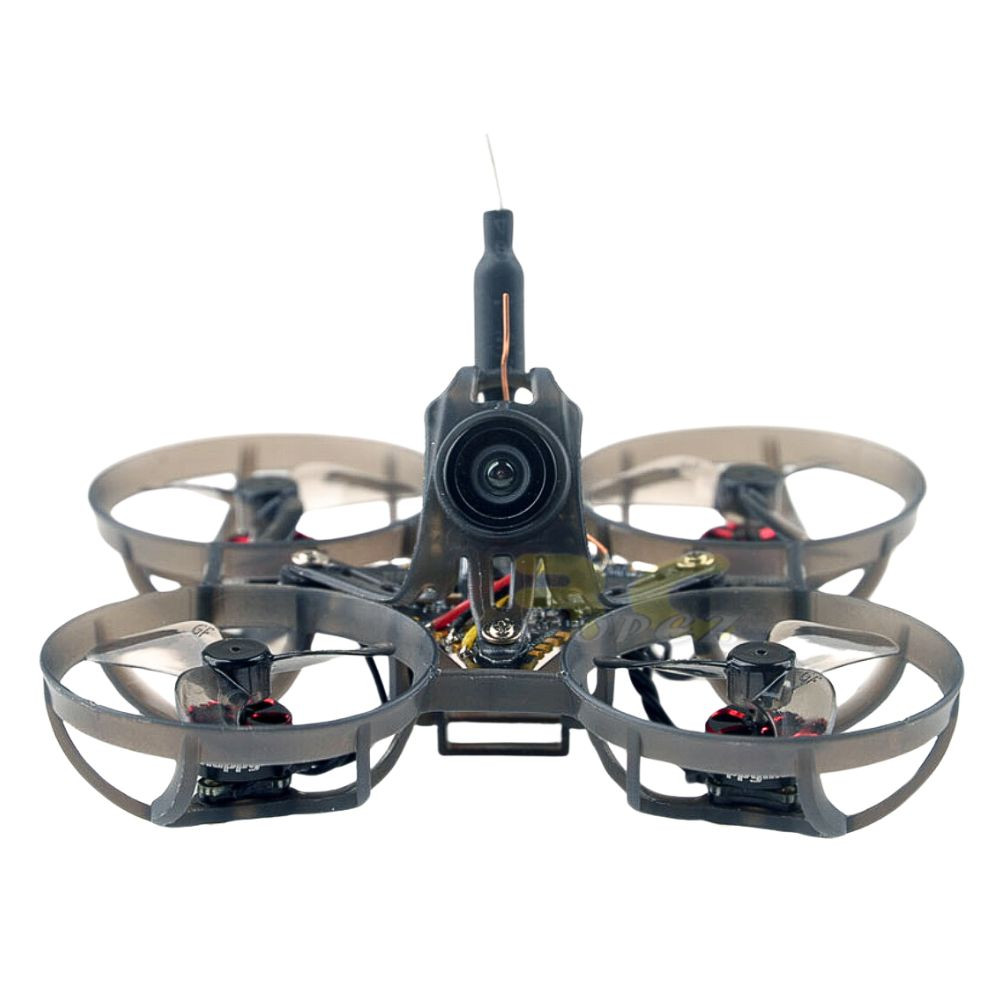

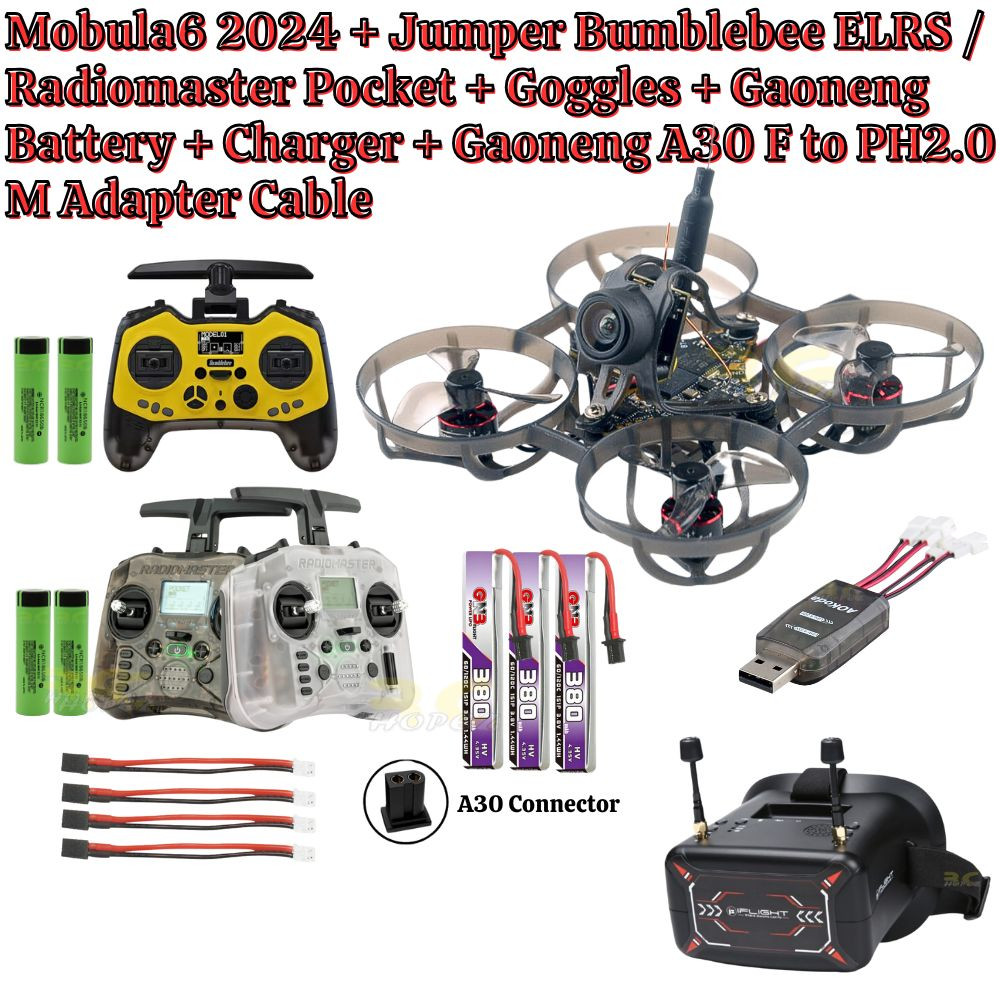

Happymodel Mobula6 2024 65mm 1S SuperX ELRS V3.0 5-IN-1 AIO Whoop + RadioMaster Pocket/Jumper Bumblebee BNF ELRS

Happymodel Mobula6 2024 65mm 1S SuperX ELRS V3.0 5-IN-1 AIO Whoop +RadioMaster Pocket/Jumper Bumblebee BNF ELRS

NOTE :

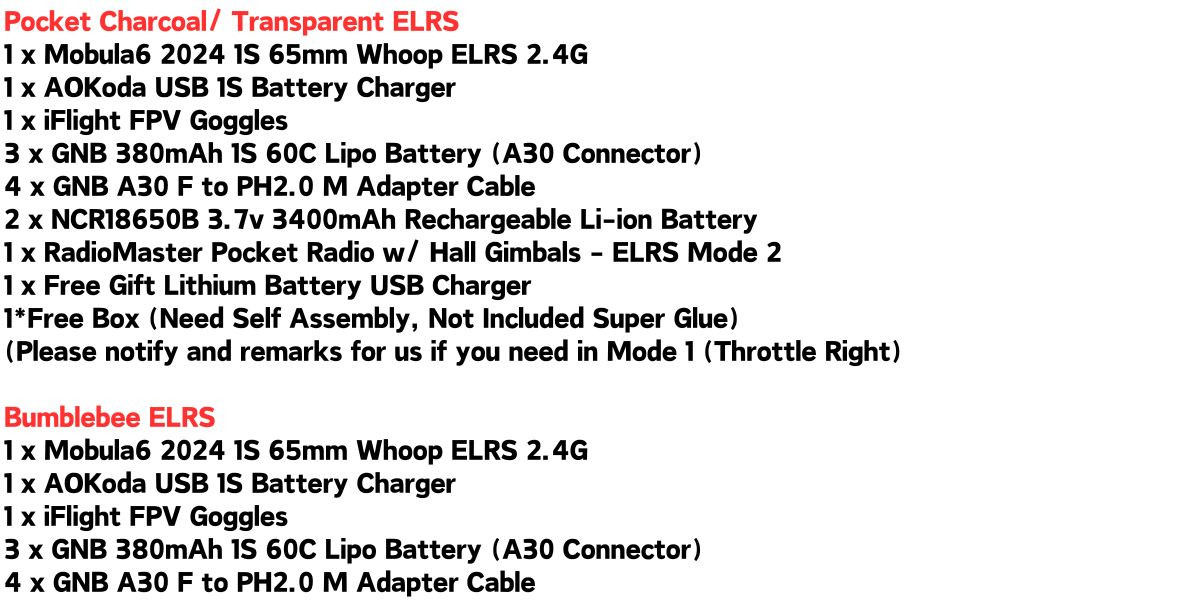

– For Jumper  Bumblebee / RadioMaster Pocket , please notify and remarks for us if you need in Mode 1 (Throttle Right)
– Gift Box need self assembly. Not Inclduded Super Glue

Features:
AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
Super light 1S 65mm Brushless whoop only 17.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
FX17-B 1/3 CMOS 800TVL Camera awesome footage
Smooth and powerful
Compatible for 1S 380mah 60C Lipo/LIHV (A30 Connector)

Specifications:
Brand Name: Happymodel

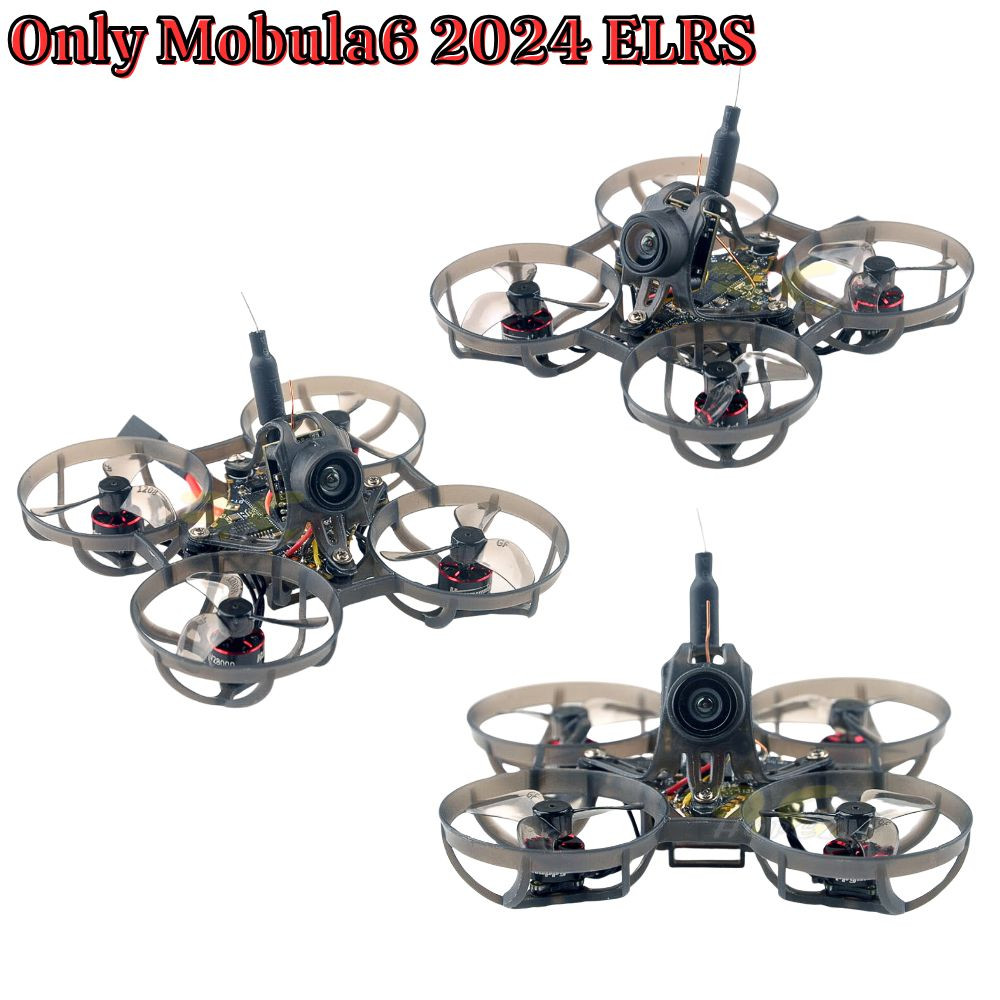

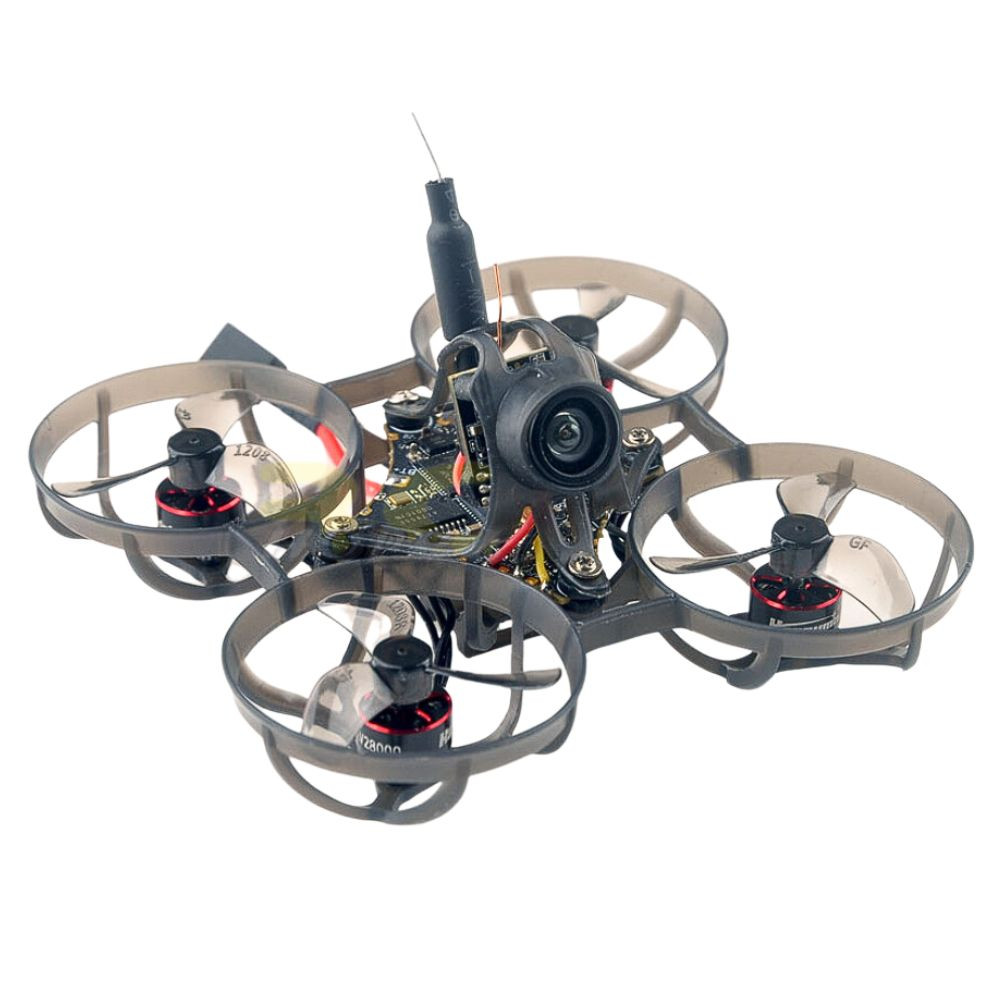

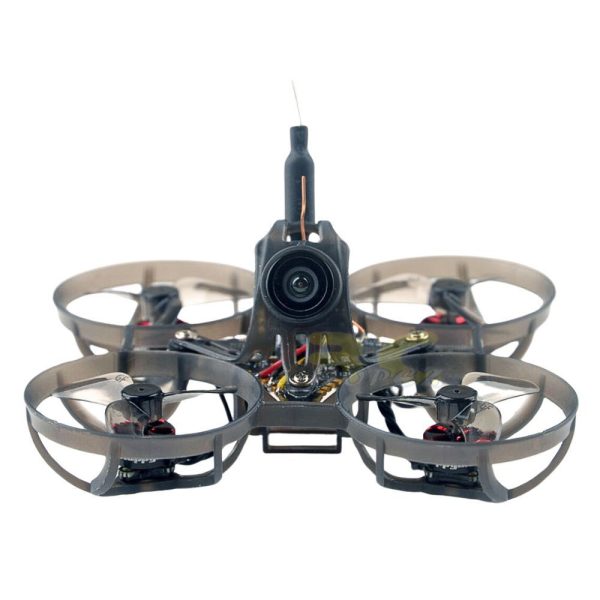

Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm

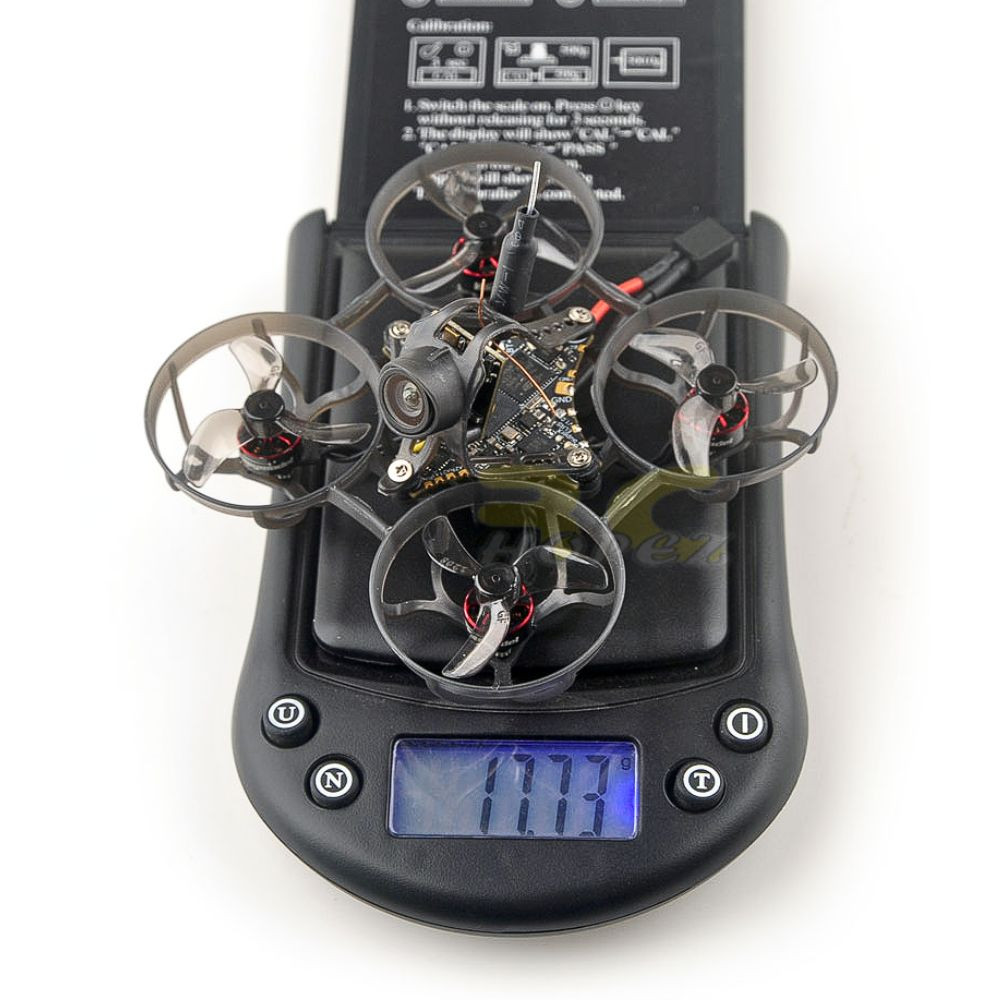

Weight: 17.7g

Motor
Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers
HQProp Ultralight Micro Whoop Prop 31MMX3 1.2×1.1 1.0mm Hole 3-Blade Propeller  OR
Gemfan 1208-3 31mm tri-blade 1.0mm propellers
Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter:  1.0mm

Flight controller

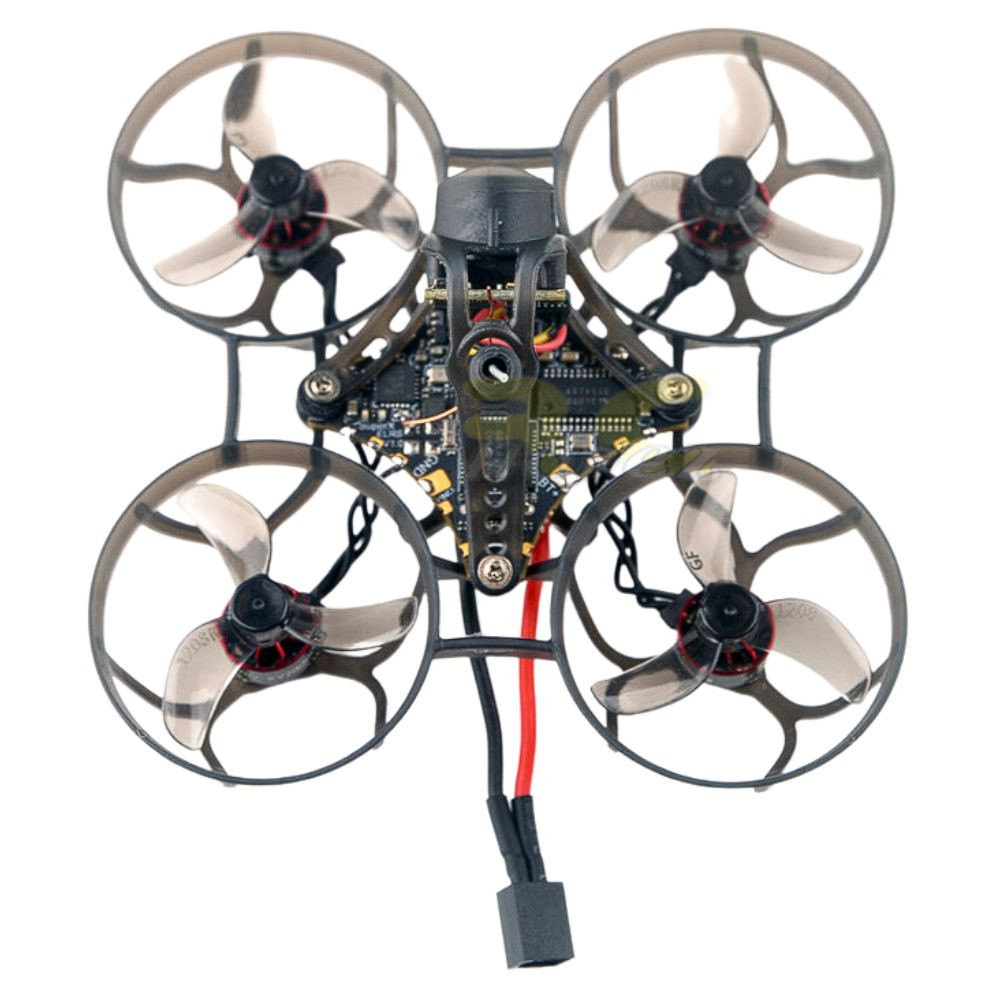

SuperX ELRS AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor:BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 1175

Onboard 4in1 ESC
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: ExpressLRS firmware target:
HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
Available from Expresslrs version 3.4.0 RC2

Onboard 5.8g VTX
Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: UFL

FX17-B Camera
Model:FX17-B
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
FOV 150°
Signal System: NTSC
Net Weight: 1.5g
Dimensions: L14mm*W14mm*H13mm

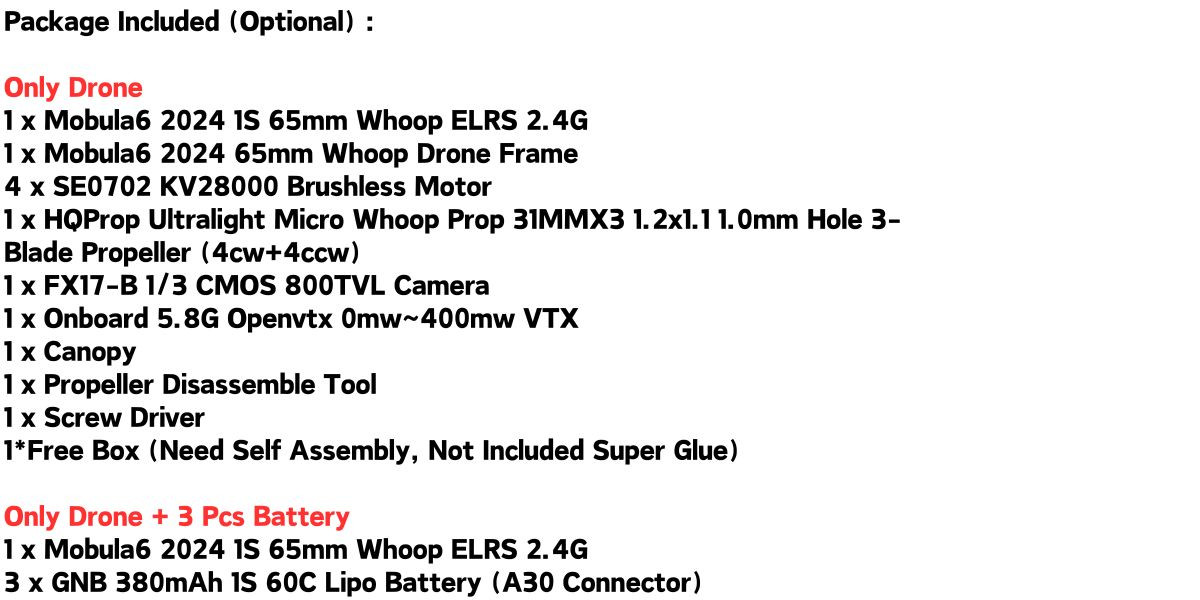

Lipo Battery (**Please select the option and package content is in the picture) :
Capacity: 380mAh
Voltage: 3.8HV
Continuous Discharge Rate: 60C
Size: 61mm x 11.5mm x 6.5mm Appr. (LxWxH)
Weight: 8.5g

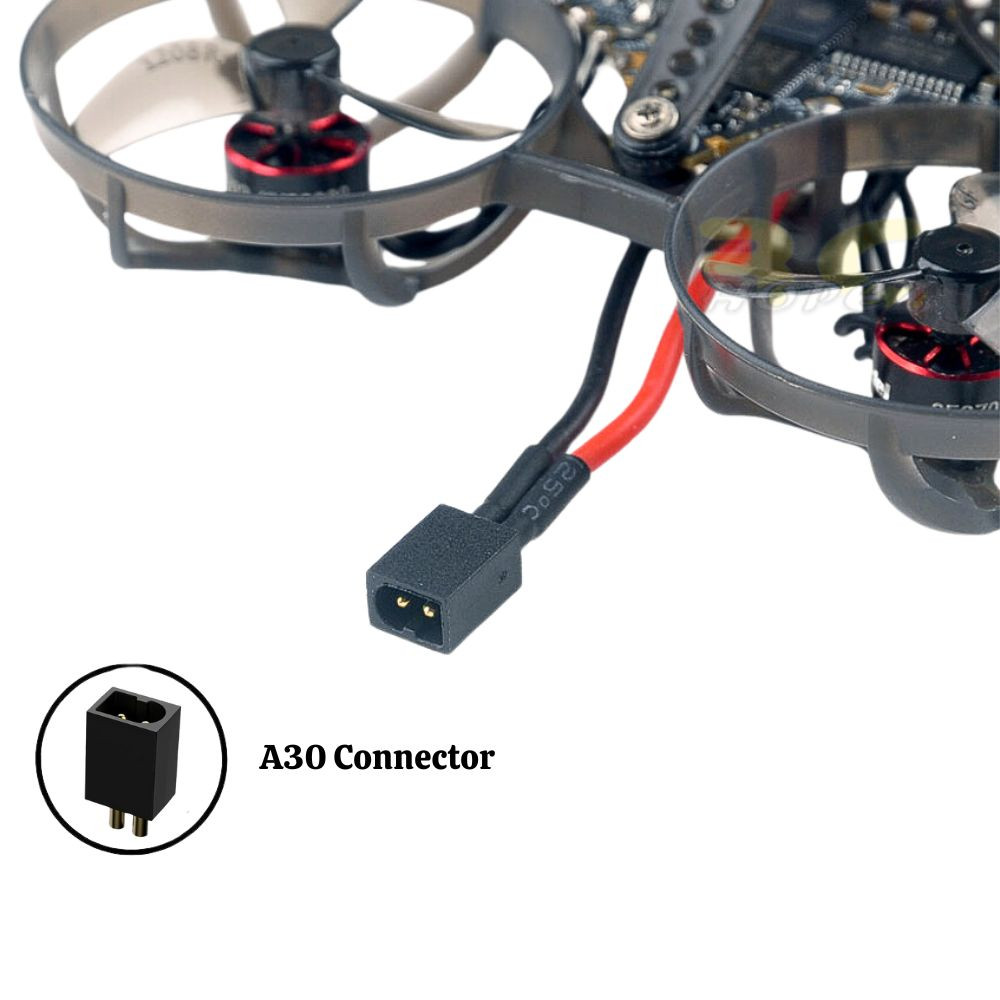

Battery connector : A30 Connector
