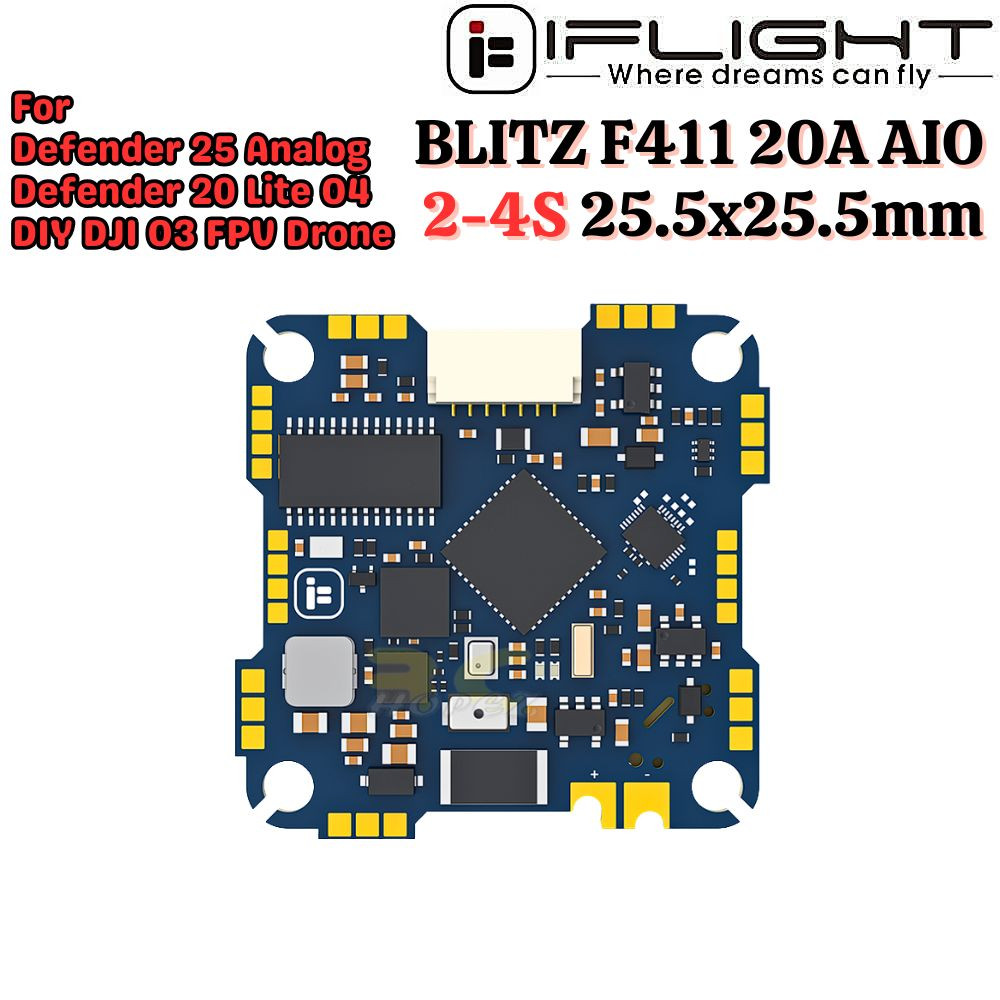

iFlight BLITZ F411 AIO 2-4S 25.5×25.5mm for Defender 25 Analog / Defender 20 Lite O4 / DIY DJI O3 RC FPV Drone MX3811

iFlight BLITZ F411 AIO 2-4S 25.5×25.5mm for Defender 25 Analog / Defender 20 Lite O4 / DIY DJI O3 RC FPV Drone MX3811

Description
This is a new generation F411 AIO designed for Defender 25. A future proof all-in-one FC to step up the game. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!

Compability For :
Defender 25 Analog
Defender 20 Lite O4
DIY DJI O3 RC FPV Drone

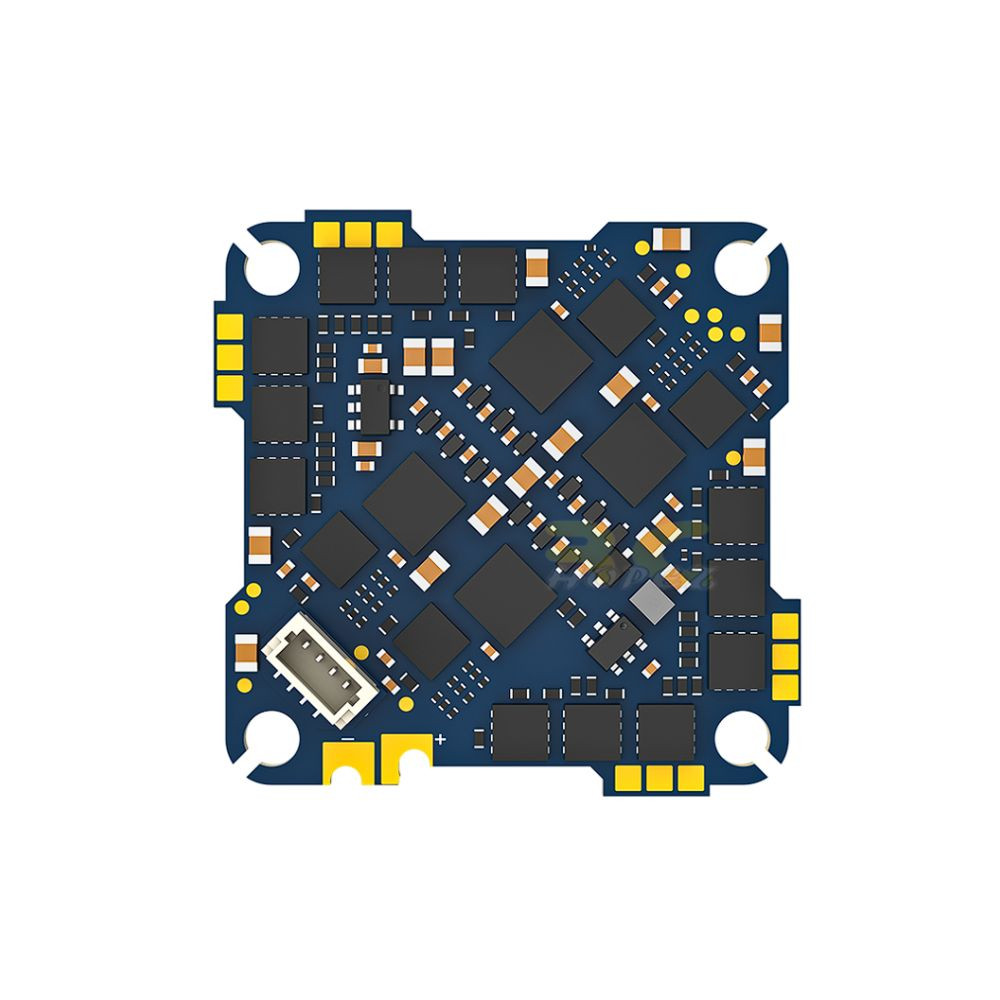

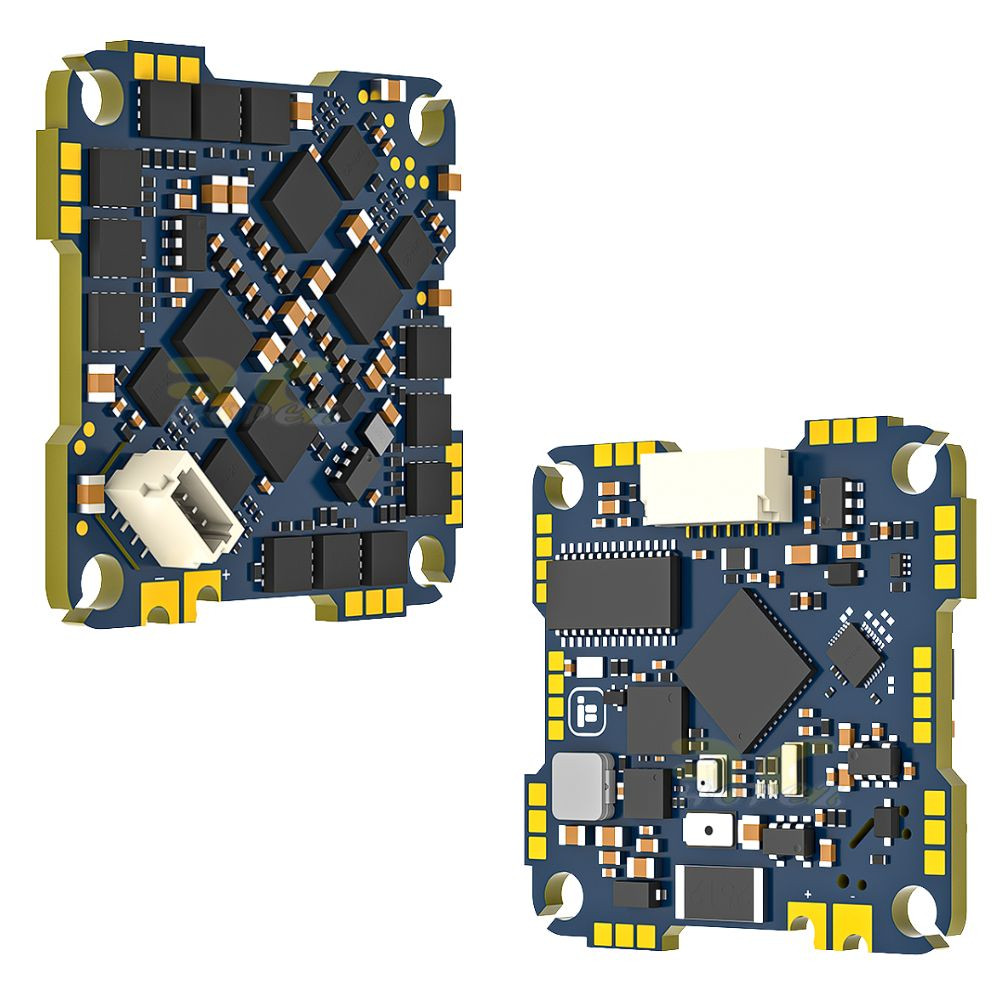

BLITZ F411 AIO FC
Specifications
MCU: STM32F411
Gyro: ICM42688
Connector: Micro
Blackbox: 8MB
INA pad: n uart2
Barometer: Yes
Weight: 7.5g±0.1g
Mounting pattern: 25.5*25.5mm/φ3mm
Dimensions: 30.5*30.5mm
FC Firmware: IFLIGHT_F411_PRO (BF4.4.2)

ESC // 20A 2-4S
Specifications
Output current: 20A, peak value 25A (10 seconds)
Current sensor: yes
Telemetry: no
ESC Firmware: Bluejay Q-H-50 (8bit ESC)
Input voltage: 2-4S

Package Includes:
1 x iFlight BLITZ F411 AIO 2-4S
4 x M2 Silicon Grommets
1 x Wire Harness
1 x Power Cables & ESC Signal Wires
