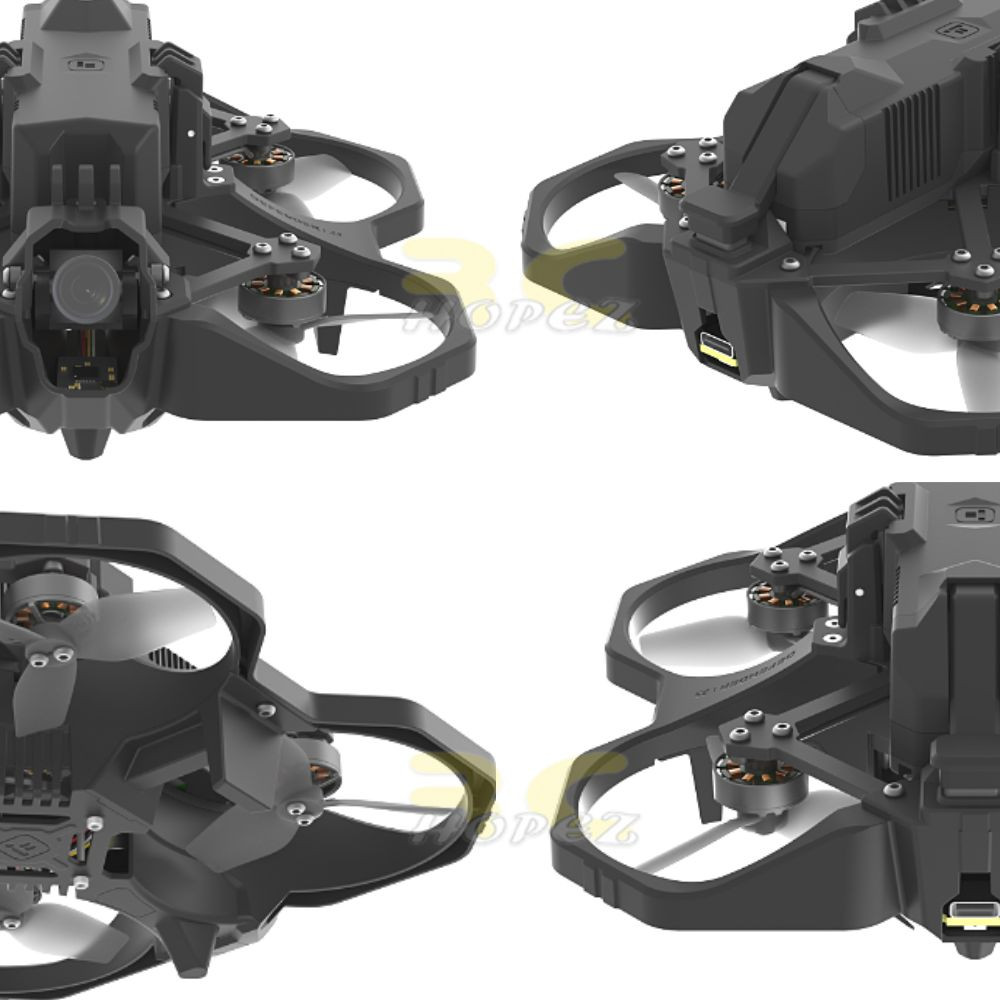

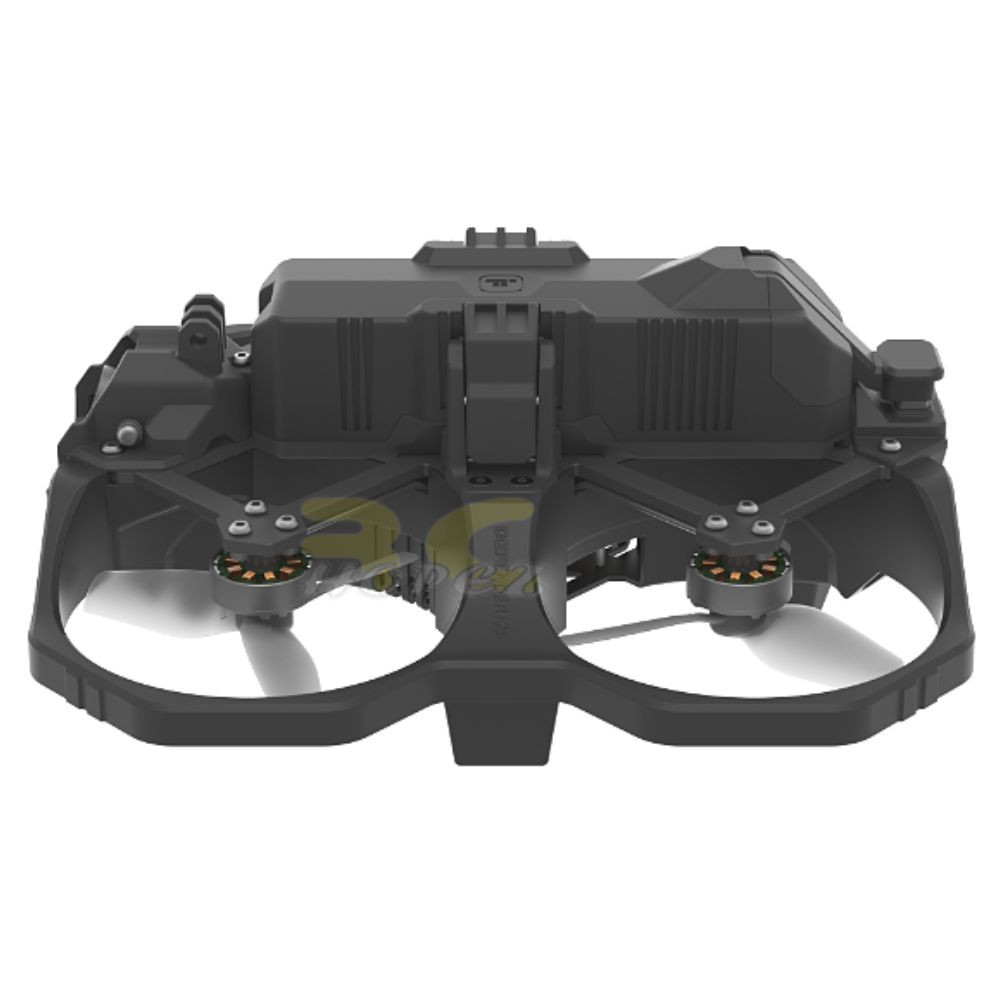

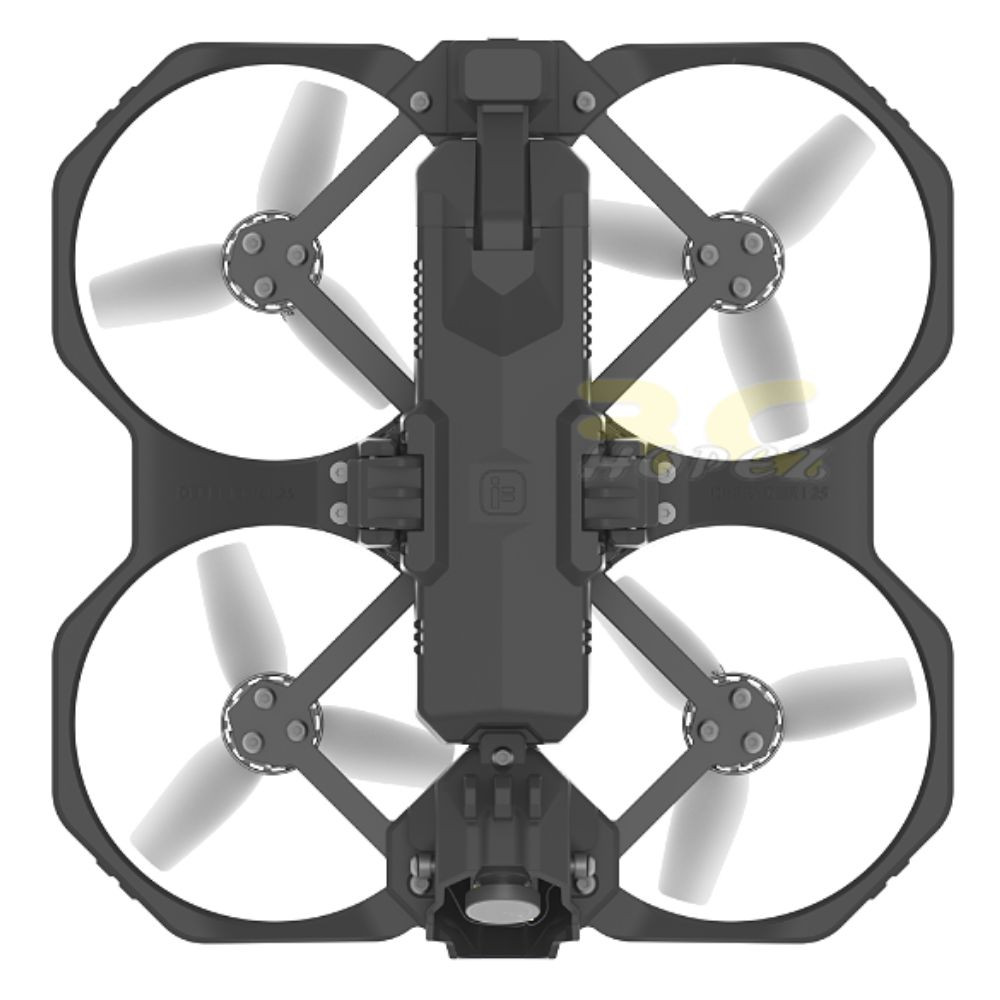

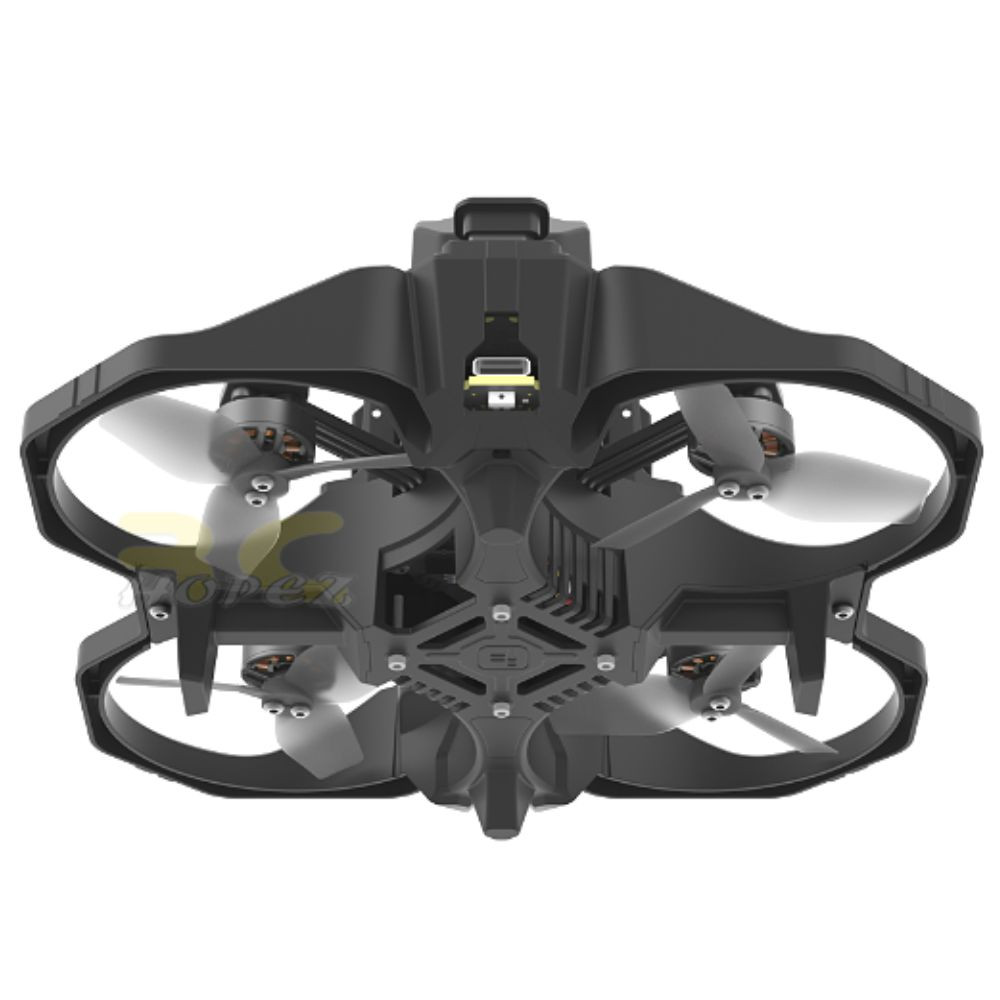

iFlight Defender 25 2.5 Inch Analog 4S Drone With RaceCam R1 Micro Camera DF25-AN

iFlight Defender 25 2.5 Inch Analog 4S Drone With RaceCam R1 Micro Camera DF25-AN

Highlights

Ultralight & Free to Fly
At sub 249g weight, our Defender25 doesn't require registration in most countries. The compact and lightweight design also makes it easy to carry and store. It will be your best travel buddy to redefine your FPV adventure.

Small But Mighty
The built-in 2.5inch propeller guards were designed to fly bold. You’ll experience a complete new creative freedom to fly whenever and wherever. The durable injection molded frame does not only prevent damage to your motors or propellers, but also protects the environment of small flight errors.

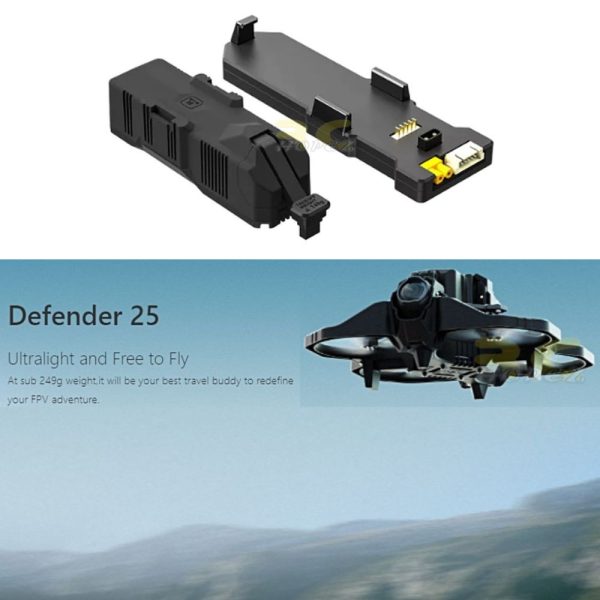

Crash Protected Quick-Release Battery
New innovative quick-release battery and charging adapter to make everything as easy as it can be. The Defender25 comes with a stock 4S 550mAh. An Endurance 900mAh battery is optional.

Inbuilt high-performance Video and Receiver antennas

Optimized Landing Gear for Take-off in Complex Environment

Countless easy-to-use features let you get started right away:

1) Turtle Mode pre-setup
2) Motors with direction arrows
3) Props with positioning column for easy installation
4) All ports and buttons are easy to access
5) Mini camera mount (Naked GoPro, Insta360, etc.)

Specifications:
Product Name: Defender 25
Frame: 112±2mm (wheel base)
Frame structure: ring type
Flight Electronics: Defender 25 F411 AIO
Image transmission: BLITZ Whoop 1.6W VTX
Camera: RaceCam R1 Micro Camera 1200TVL Lens 1.8mm14*14
Motor: Defender 25 1404 4150KV
Prop: Defender25 2525 props (2.5 inch)
Weight of the Aircraft: 180g
Takeoff Weight incl. 550mAh battery: ≤249g
Takeoff Weight incl. 900mAh battery: ≤280g
Dimensions (L×W×H)：158x155x69mm
Max Hover Time: Approx. 6 mins(with 550mAh battery),
10mins(with 900mAh battery)
Defender 25 charging adapter board is standard.
Antenna: Defender 25 ipex 5.8G image transmission antenna (90mm long)

BLITZ Whoop 1.6W VTX
Power levels: PIT/25mW/400mW/800mW/1600mW
Mounting pattern: 25.5 * 25.5/φ 1.6mm.
Outer frame size: 37*31.5*10mm
Interface: IPEX 1
VTX telemetry: IRC Tramp
Weight: 16.5g (±1g)
Channels: 40 (including Raceband)
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

Port description:
Vbat: 2-8s, 7-34V DC positive input
GND: negative electrode
Rx: IRC tramp signal input
5V Out: 5v power supply output.
GND: negative electrode
VIDEO IN: image input port
CAMERA OUT: camera signal output
CAMERA IN: camera signal input

Recommended (Not Included)
iFlight Defender 25 Battery – 900mAh

Receiver : Without Receiver, ELRS 2.4G, TBS Crossfire Nano (Optional)

Packing List
1 x Defender 25 Analog 4S Drone
1 x Defender 25 550mAh Battery
1 x Charging Adapter Board
4 x Defender 2525 Props (pairs)
