Happymodel Mobula6 20g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Nano 3 Cam Regular 19000KV / Race 25000KV Frsky HP006

Happymodel Mobula6 20g 65mm Crazybee F4 Lite 1S Whoop BNF w/Runcam Nano 3 Cam Regular 19000KV / Race 25000KV Frsky HP006

Note : The flight controller for Mobula6 and Mobula6 HD Frsky version and Flysky version would upgrade to V4.2 version since 15th .Jun 2022, please check the update log :

https://www.happymodel.cn/index.php/2022/02/14/mobula6-v2-0-upgraded-flight-controller-crazybeef4fr-lite-crazybeef4fs-lite-v3-1-version-update-log/

Features:
AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
Extreme light 1S 65mm Brushless whoop only 20g
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Size: 80mm*80mm*37mm

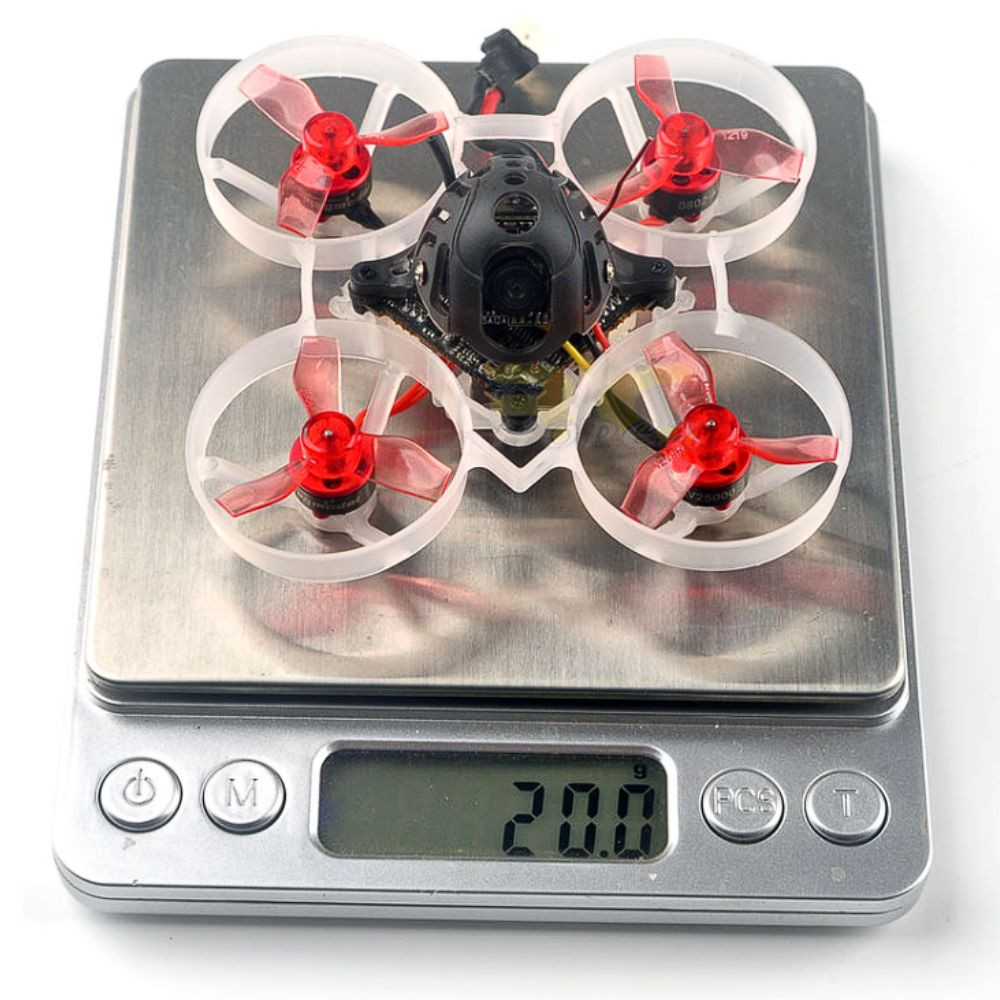

Weight: 20g
Takeoff weight: 28g

Specifications:
Brand Name: Happymodel
Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Net weight: 20g(without battery)
Takeoff weight: 28g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Motor speed option:
SE0802 KV25000(Race Edition)
SE0802 KV19000(Regular Edition)

Spare parts specifications:

Motor
Model: SE0802 19000KV or 25000KV (Optional)
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only

Propellers
Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g

CrazybeeF4 Lite v4.2 (updated since 15th June 2022)
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX (Openvtx)
Output power: 0mw~400mw
Frequency: 48CH
Input voltage: 3.3V~5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 48 channels
With Race band Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.3mm(M6.5) FOV 140°
Signal System: NTSC
S/N Ratio: >50dBElectronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
