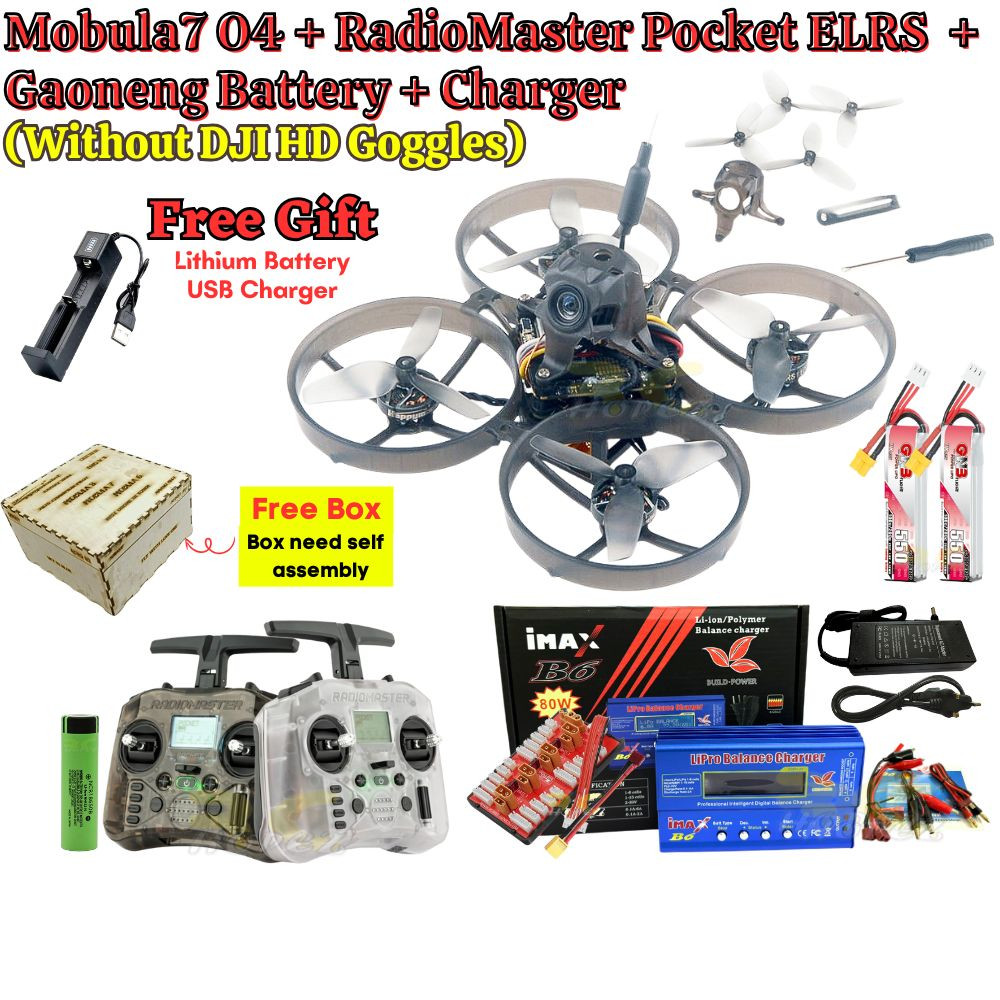

Happymodel Mobula7 O4 DJI 2S 80mm CrazyF405HD ELRS V3.0 Digital HD Micro Whoop +RadioMaster Pocket BNF ELRS

Happymodel Mobula7 O4 DJI 2S 80mm CrazyF405HD ELRS V3.0 Digital HD Micro Whoop +RadioMaster Pocket BNF ELRS

Notice before buy : According to DJI’s warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed.

NOTE :
– For RadioMaster Pocket , please notify and remarks for us if you need in Mode 1 (Throttle Right)

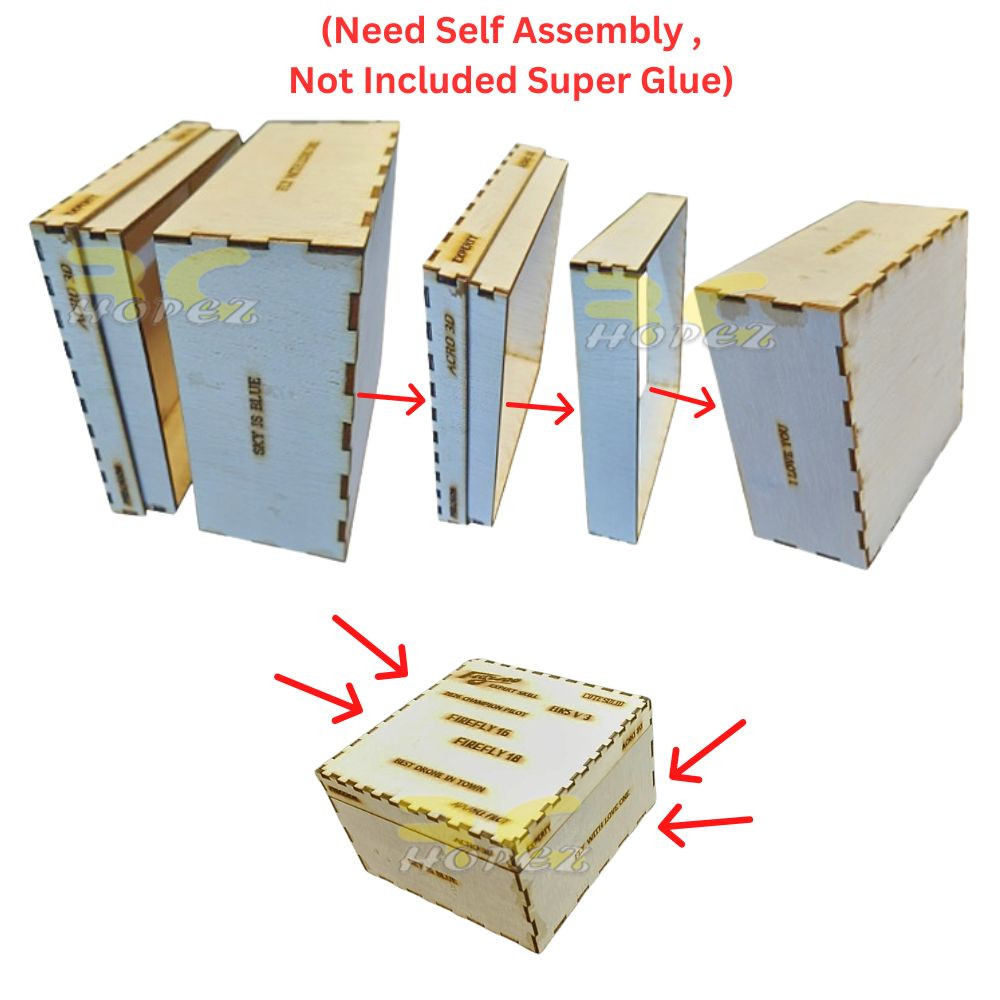

– Box need self assembly. Not Inclduded Super Glue
– Without DJI HD Goggles

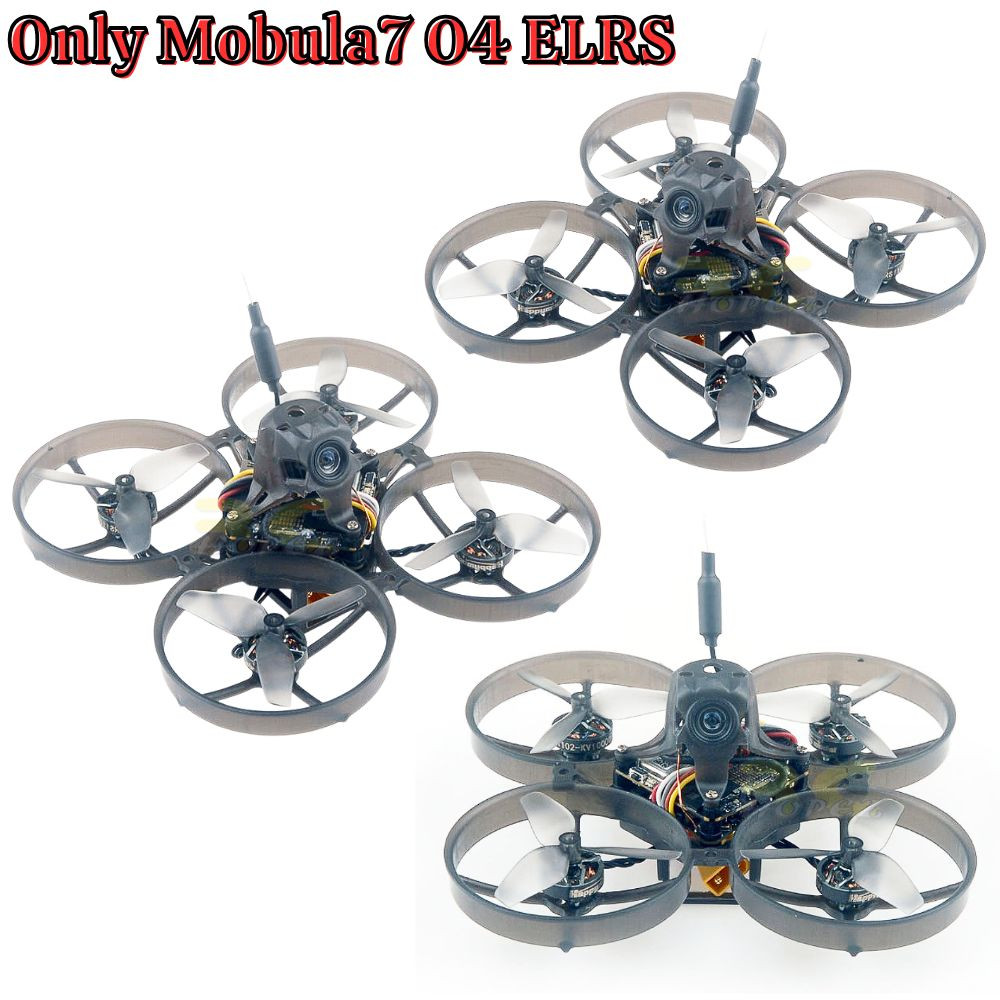

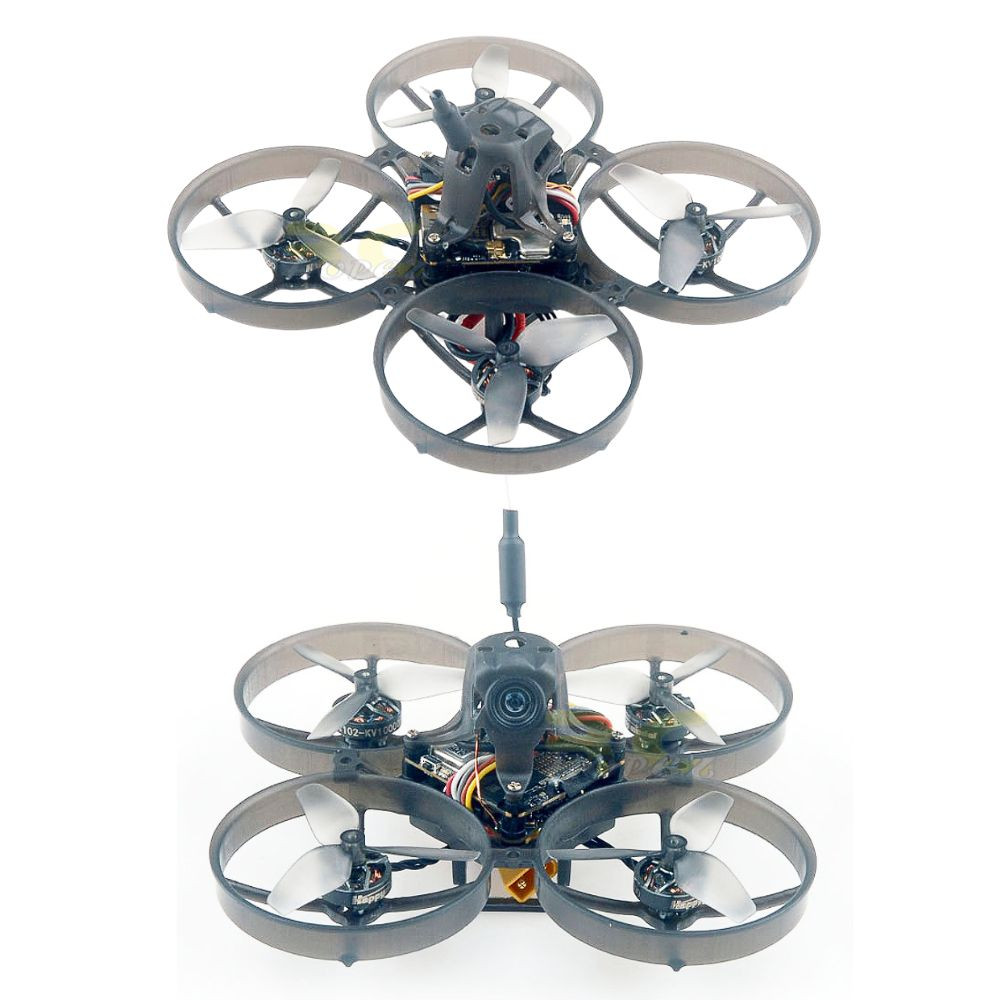

The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor with HQPROP 45mm propellers , bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.

Features:
Equipment with New DJI O4 air unit
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Lighter and small for indoor FPV

Specifications:
Brand Name: Happymodel
Item Name: Mobula7 O4 2S 80mm micro FPV Whoop
Wheelbase: 80mm

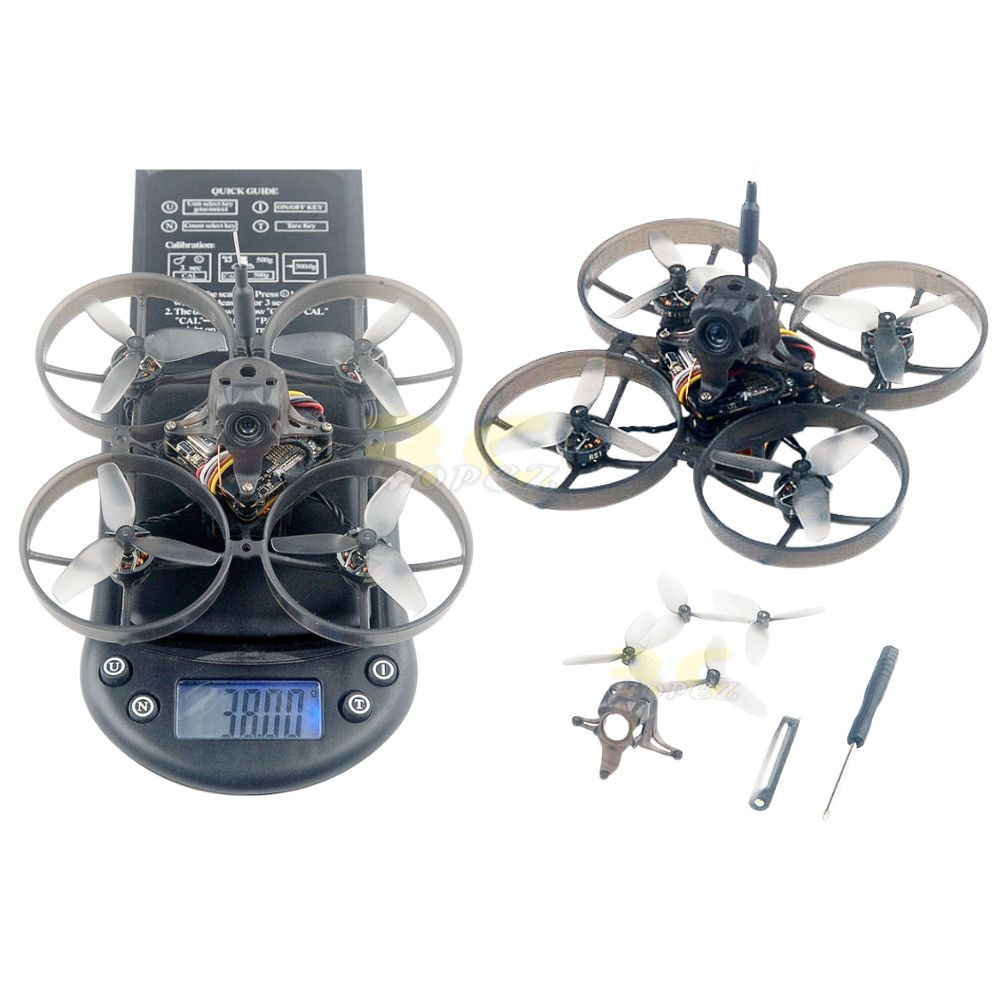

Weight: 38g

Motor
Mode: RS1102 KV10000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*14mm
Weight(g):2.8g
No.of Cells(Lipo):1-2S

Propellers
Weight:0.33g
Material: Poly Carbonate
Pitch:0.9
Props Dia:45mm
Hub Thickness:5mm
Shaft:1.5mm

Flight controller
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

DJI O4 Air Unit
Weight:
Air Unit (camera module included): Approx. 8.2 g
Transmission Module: 30×30×6 mm (L×W×H)
Camera Module: 13.44×12.36×16.50 mm (L×W×H)
Camera Cable Length: 50mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency varies by region. Refer to local regulations.
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Live View Quality: 1080p at 30/50/60/100fps
